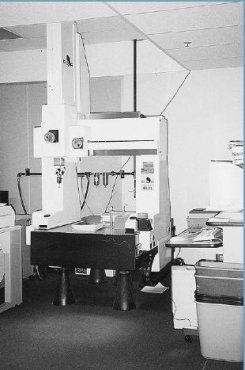

DEA-IOTA: DIAMOND 0101 DCC
Measuring volume:
X = 590 mm
Y = 590 mm
Z = 440 mm

Design: Portal building method

Dimensions
Length : 1500 mm
Width: 1200 mm, Height: 2800 mm

Weight/KMG: approx. 3 t

Positioning uncertainty 1:+4.0µm

Positioning uncertainty 3:+4.5µm

Maximum table load: 1,000 kg

Compressed air feed circuit: Minimum air pressure 5 bar, consumption approx. 150 Nl/min

Electrical connection: 220V/50 to 60HZ

Environment temp. : 20 C + 3 C

2.PC with printer after newest state of the art

3.Software Quindos with the program modules
...Basis
...Form and position tolerances
...Statistics Basis
...Diagram Ball
...disk monitoring

Inclusive installation

4.Packaging, transport, insurance at cost

The measuring machine is as good as new

-
