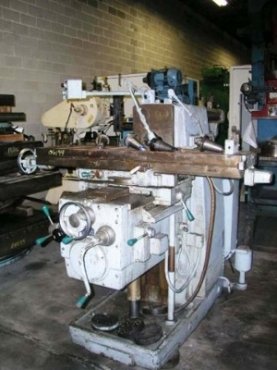

205S-12 KEARNEY & TRECKER UNIVERSAL HORIZONTAL MILL
PRICE: Loaded on Truck, Our Warehouse, York, PA



Serial # 53-1004-11 New Approx. 1972 Model # 205-S-12

Stock # 06194

Table Size: 12" x 56" with (3) 11/16" T-Slots on 2 1/4" Centers

Spindle Taper: #50 Standard

(24) Spindle Speeds: 25 to 2000 RPM

(16) Power Feeds to Table In & Out Longitudinal: 1/4 to 32 IPM

(16) Power Feeds to Knee Vertical Travel: 1/8 to 16 IPM

Rapid Traverse Rate to 150 IPM / 75 IPM Vertical

Table Travel Longitudinal: 28"

Table Travel Cross: 10"

Knee Travel Vertical: 18"

Table Swivels Left or Right 47 Degrees



EQUIPPED WITH:

Draw Bar, Backlash Eliminator

Hardened & Ground Knee Ways

(1) Arbor Support Bracket

(2) Adjustable Stop Dogs for Cross Travel

(2) #50 to #40 Tool Holder Adapters

(1) 1-1/4" End Mill Holder #50 Taper

(1) Shell Mill Holder #50 Taper

Missing Adjustable Stop Dogs for Longitudinal Travel

Coolant Pump & Piping

Work Light

5 HP Main Motor, Wired 3 Phase, 460 Volts

Overall Dimensions: 75" LR x 82" FB x 47" H x Approx. 7,000 Lb.

72 x 78 x 75

3500#
