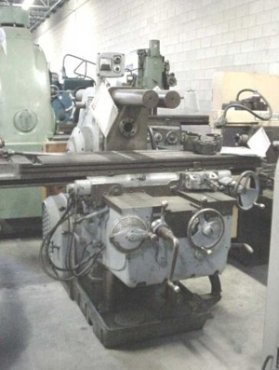

215TF-16 KEARNEY & TRECKER PLAIN HORIZONTAL MILL

PRICE: F.O.B. OUR WAREHOUSE, YORK, PA

Stock # 98364
Serial # 55/1005/02 New 1969 Model # 215TF-16

Table Size: 15 3/4" x 62" with (3) 11/16" T-Slots on 2 3/4" Centers &

(1) 11/16" T-Slot 1 5/8" to Center from Back Edge of Table

Spindle Taper: #50 National Standard

(24) Spindle Speeds: 15 to 1500 RPM

(32) Table Feeds: 3/8 to 90 IPM

Vertical Knee Feed: 1/8 to 30 IPM

Table Travel Longitudinal: 28"

Table/Saddle Cross Travel: 10"

Knee Travel Vertical: 17"

Rapid Traverse Rate: 150 IPM/Vertical Rapid 50 IPM

Maximum Distance from Table Surface to Spindle Center: 17"



EQUIPPED WITH:

Hardened & Ground Replaceable Knee Ways

Twin Knee Elevation Screws

(1) Arbor Support Bracket

Manual Draw Bar

Table Anti-Backlash Control

Auto Cycle to Table

Worklight

Coolant Pump & Piping

15 HP Spindle Motor

3 HP Feed Motor

1/4 Coolant Motor

Wired 3 Phase, 460 Volts/230 Volts

Overall Dimensions: 78" L-R x 92" F-B x 69" H

Weight: 9,000 Lb.
