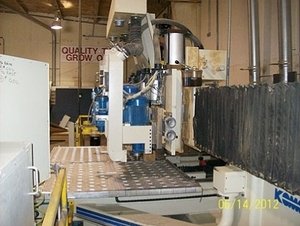

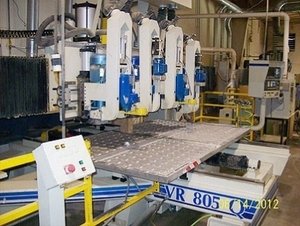

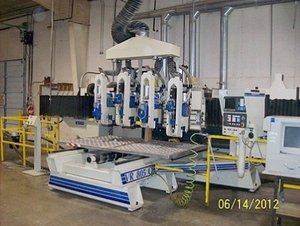

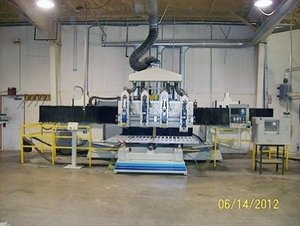

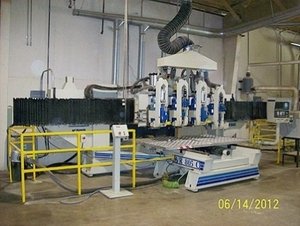

5' X 8' KOMO VR805Q 3-AXIS CNC ROUTER
General Specifications
Table:
Table travel (Cross) Y-Axis 71-1/2"
Table dimensions (W X L) 60" x 96"
Type of work mounting plate on each table
Working envelope 96"x60"x8"
Perske 12.5 HP 4
Programmable Spindle speeds through 18,000 RPM
Piggyback high speed drills 2
Spindle Carriers:
Transverse Travel (X-Axis) 162"
Spindle head travel on cross rail (X-Axis)
Longitudinal travel 244"
to Center of spindle (Adjustable) 10"thru 24"

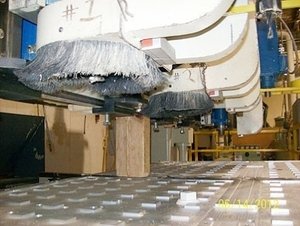

Routers 4
Variable through 18,000 RPM
Collet type quick change 1/8" thru 1"
Vertical travel (Z-Axis) 8"
Z Position slide 6"
High speed drills (piggyback) 4
RPM 18,000
Capacity 3/8"
Drill chuck assemblies 1/2"
Vertical travel (Z-axis) 8"
Feed range tranverse:
X & Y-Axis 1000 IPM
Z-Axis 600 IPM
Machine dimensions 129"Dx292"wx111"H
2 Stock# 10821 2 2 3 SERIAL NUMBER 4 NEW 5
Motor Specifications
Not Available
Equipped With
Start/Stop Buttons with Keys
Safety guards
(4) Horsepower (Routers)
(2) Horsepower (High speed drills) .035

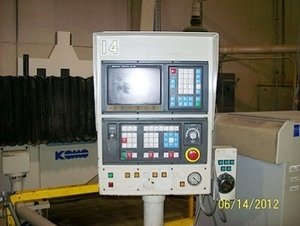

GE Fanuc OMC CNC microprocessor
Emergency stop buttons
Fanuc OMC: Linear & Circular interpolation
Cutting Radius compensation
Toll length offset
Work coordinate offset system
Absolute & Incremental programming
Feed rate & Rapid traverse override
Background editing
RS232 Port

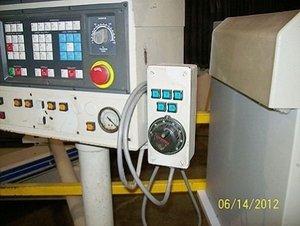

Manual pulse generator
Canned cycle 10 HP Vacuum PumpWATCH VIDEO: http://www.youtube.com/watch?v=rWZkJBk4EMw
Serial Number
1065392 Year
1992 Location
PROSPECT HEIGHTS, IL
