Description:

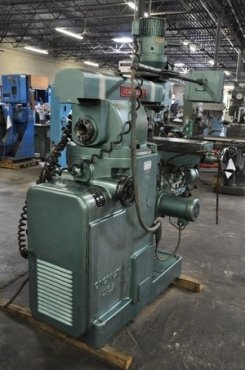

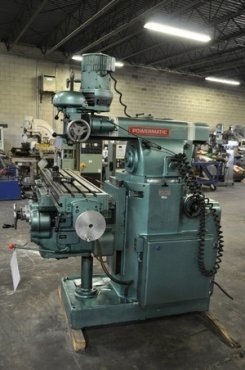

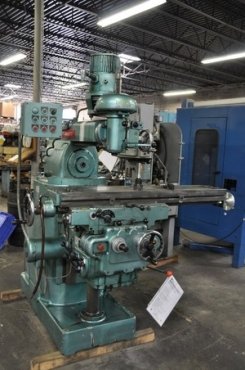

POWERMATIC HORIZONTAL-VERTICAL TURRET MILL
PRICE: Loaded on Truck, Our Warehouse, York, PA …… $6,950.00
Stock # 12067-P
Serial # 7131 Model: Q

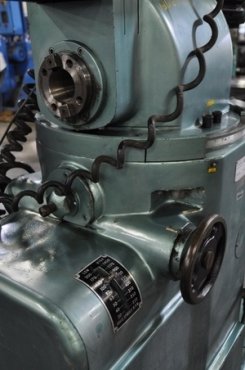

HORIZONTAL SPINDLE:
Spindle Taper: #50 National Standard
Spindle Can Rotate 360 Degrees
NO Tool Draw Bar for Horizontal Spindle
NO Overarm Support Brackets
NO Quill Travel
Horizontal Spindle Speeds: 30 to 1450 RPM Variable via Hand Crank
5 HP Spindle Motor
VERTICAL SPINDLE:
Spindle Speeds: 60 to 3400 via V-Belt Step Pulley and 4-Speed Gear Box
Variable Power Quill Feeds via Separate Vari Speed Motor
Swivels Left & Right 360 Degrees (Does Not Tilt Front or Back)
Spindle Taper: R8 with Manual Tool Draw Bar
3/4 HP Head Motor
Manual Hand Crank Quill Travel: 4"
Head Built by US Burke Machine Tool
GENERAL MACHINE:

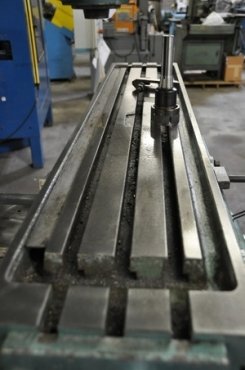

Table Size: 10-5/8" x 53" with (3) T-Slots
Approximate Axis Travels: 32" X, 9" Y, 20" Z
(2) Adjustable Feed Stop Dogs on X-Y-Z Axes

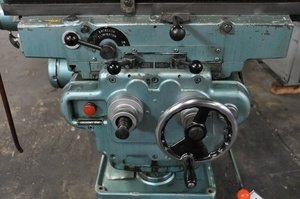

Power Feed Rate: 3/4 to 30 IPM via Gear Box
Showa One Shot Lubrication System
Table Traverse Hand Wheel on Right Side is Homemade, Left Side is Factory Original
Inch Graduated Dials on X-Y-Z Axes

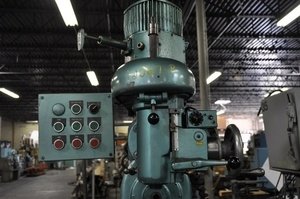

Machine Push Button Start-Stop Control Box
Manual Spindle Brake on Vertical Head
Table Backlash Eliminator
Universal Engineering Kwik Switch Adapter #80V419 (No Tool Holders or Spanner Wrench)
Rapid Traverse to X-Y-Z Axes
Ram Travel: 24" In & Out Approx.
No Coolant Pump or Piping
MISSING Vertical Knee Crank Handle
GENERAL MACHINE:
Box Style Saddle Ways in Good Condition (Not Hardened)
Table Top is in Good Condition but Has Some Minor Cut Marks
? HP Power Feed and Quill Feed Motors
Machine is Wired for 3 Phase, 60 Hz, 230/460 Volts
Overall Size: 72" L-R x 74" F-B x 84" High
