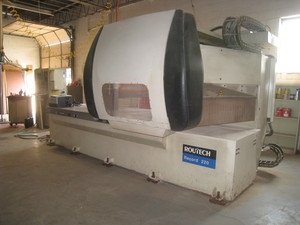

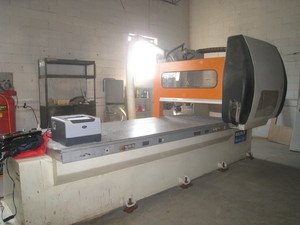

5' X 10' SCM ROUTECH RECORD 220 CNC ROUTER WITH VERTICAL & HORIZONTAL HEADS
General Specifications

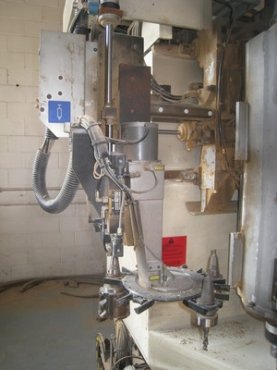

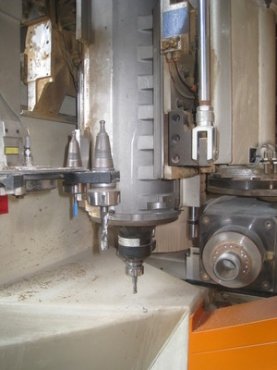

Head Unit: 10 HP, to 18,000 RPM, ISO30 "Quick Change" router spindle and automatic tool changing system (ATC) with a 10-tool computer controlled tool magazine mounted to the back of the head. Supplied with ten (10) ISO 30 tool holders and ten (10) collets.

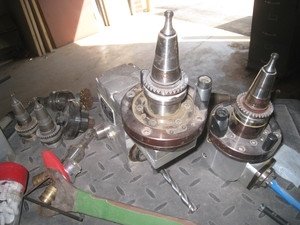

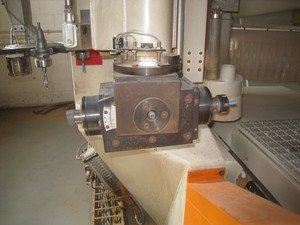

Powered horizontal electro-spindle with 2 outlets
Rotation speed 900-18,000 RPM
Power7.5 HP.a 12,000 RPM
Right rotation
Static inverter for stepless spindle speed and rapid shutdown of rotation
Fixing or cylindrical shank tools 3-20 mm Dia.
Expandable collet - standard supply 19/20 mm nr 1 Dia.
15/16 mm nr 1 Dia.
Attachment for blades with int. dia. 45 mm
Max. blade dia. 250 mm
Attachment for exhaust hood for saw-blade 100 mm Dia.
CNC controlled stepless rotation along "X, Y" plane 0-270 Deg.
Manual orientation of horizontal axis -15 Deg.
On-Off vertical pneumatic stroke of whole unit 300 mm
90-0- -90 Aggregate head
Rotation of the spindle is both clockwise and counter clockwise with CNC Controlled selection as a standard feature.
Technical Features:
10 Station circular magazine
ISO 30 Quick change toolholders
Panted safety locking system
Max. center distance between tools - 86.5mm (3.4")
Max. tool diameter - 150mm (5-7/8")
Max. weight of individual tooling 4.5kg (10 lbs)
Max. total weight of tooling contained in the tool charger - 30kg (66 lbs)
Technical Features:
On/off pneumatic stroke of drilling head 60mm (2-1/4")
Work height from spindle nose to table top 320mm (12-1/2")
On/off stroke of each spindle 60mm (2-1/4")
Cont. on page 2
Stock 1
2 3
SERIAL NUMBER 4 NEW 5
3
GENERAL SPECIFICATIONS: (Cont.)
Worktable:

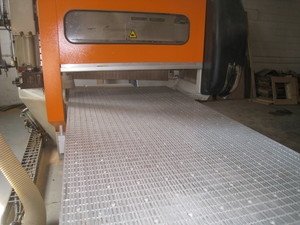

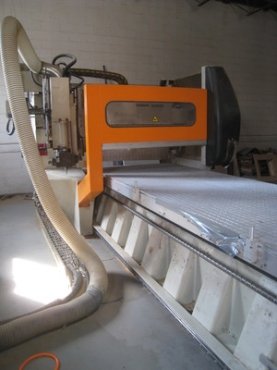

The upper worktable is manufactured of aluminum and has 30mm spaced grooves both lengthwise and widthwise to accommodate rubber seals to vacuum clamp work pieces of any shape. The threaded holes (120mm pitch) are in a grid layout of the worktable enabling vacuum clamping, anchoring of equipment, and mechanical clamping systems. Vacuum cups (60mm & 120mm pods) can be inserted in the 120mm pitched, threaded holes for workpiece clamping together with retractable (pop-up) stops for referencing to eliminate the need for spoilboards and templates.
Dimensions of Worktable:
3120mm (122.8" left to right)
1200mm (47.25" front to back)
Vacuum System:
The vacuum hold-down system consists of a high delivery, high head pressure vacuum pump linked to a worktable equipped with CNC controlled double vacuum circuits enabling sommuler machining with two (2) independent vacuum zones per table.
*Electronic opening and closing of the vacuum circuits.
*Line filters for protection of the vacuum pump.
*Push button to actuate each vacuum zone.
*Equipped with safety circuit that suspends the machine operation until the operator engages the vacuum system.
*Double vacuum meter provided to indicate vacuum pressure for the worktable.
*Input and output connections for pneumatic devices are placed along the front edge of the worktable.
Max. vectorial speed 85 m/min
Max. rapid feed speed (X & Y) 60 m/min -(2,362 in/min)
Max. rapid feed speed (Z-Axis) 30m/min-(1,181 in/min)
X Stroke 3250mm (128")
Y Stroke 1550mm (61")
Z Stroke 300mm (11.8")
Cont. on Page 3
Stock 1
2 3
SERIAL NUMBER 4 NEW 5
3
GENERAL SPECIFICATIONS:(Cont.)
Control Unit:

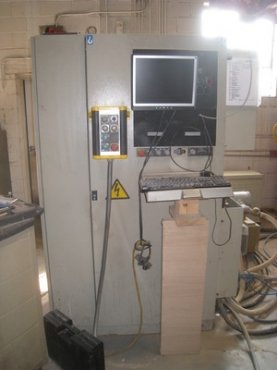

NUM Model 1040 (PC Based), Multi-axis CNC control. THe NUM 1040 represents a state of the art fourth generation CNC control unit, supplied with an extra large memory capacity enabling a large number of programs to be resident in the control unit at all times. The NUM 1040 is extremely easy to learn and use as the unit seeks out programming and assists the operator in correcting the program, along with a color graphic video terminal which allows a visual check of the work piece program as well as the cutting tool path.
Technical features: *1.2G Disc Drive *Profile geometry programming *16 megs of RAM memory *10.5" color graphic video monitor *Parametric programming
Motor Specifications
Not Available
Equipped With
Programmable angular offset
Acceleration control
139 Available variables
Programming from keyboard
Windows operating system
Helical interpolation
Programmable scale factor
Programmable mirroe image
Tool compensation
The control is mounted in a seperate control cabinet supplied with a filter
air cooling/circulation system. NOTE: REPLACEMENT PRICE $166,000.00
Serial Number
AA1-11143 Year
1999 Location
ON LOCATION
