Description:

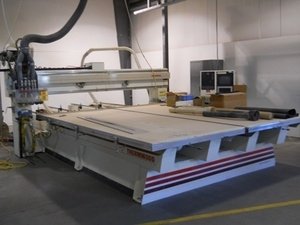

60" X 148" THERMWOOD MODEL 42 3-AXIS CNC DUAL TABLE ROUTER
General Specifications
Moving table, Fixed gantry
Table size: (2) 60" x 148" Travels:
X-Axis60"
Y-Axis148"
Z-Axis6"
Feed rates:
X-Axis0 - 1500 IPM
Y-Axis0 - 1500 IPM
Z-Axis0 - 1500 IPM
Power:3 Phase, 60 Cycle,
440 volt or 220 volt
Router HP10 1/2
Router speed 3000 - 24000 RPM
Router bit shank size Up to 3/4"
Dimensions 125"L x 159"W x 85"H Weight (approx.) 16,500 LBS(approx)
Motor Specifications
Wired 3/60/460V, 32 KVA, 40 Amp
Equipped With

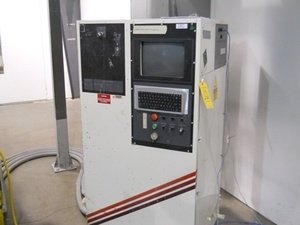

Thermwood model 91,000 super control version 5.0 software (windows based)
High flow vacuum plumbing
10 1/2 HP Variable speed HSD spindle, 3000 - 24000 RPM

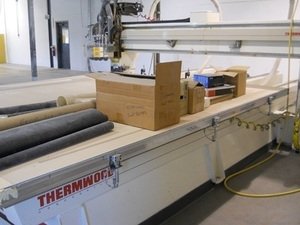

(2) 60" x 148" Tables

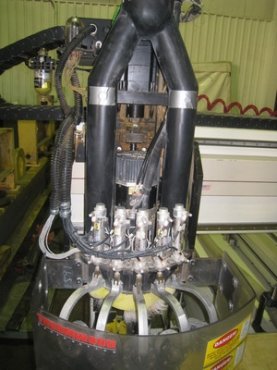

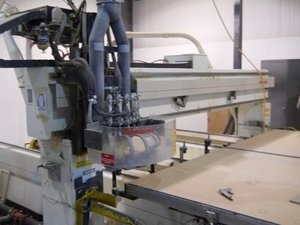

5 Position spindle mounted tool changer

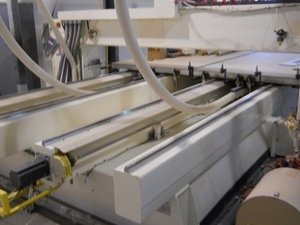

Pneumatic auto pop up pins
Quincy vacuum pump
Vacuum table
Automatic tool changer, bar style, 4 position
Automatic lubrication system
Portable hand held programming unit
Serial Number
C421490303 Year
2003 Location
PROSPECT HTS., IL
