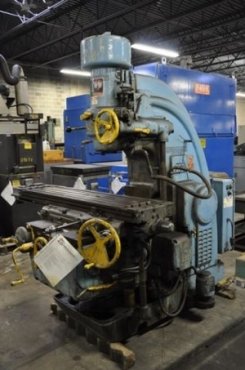

220TF KEARNEY & TRECKER VERTICAL MILL
PRICE: F.O.B. OUR WAREHOUSE, YORK, PA ……….



Stock # 01001

Serial # 3-8355 New 1958 Model # 220TF

Table Size: 14" x 62" with (3) T-Slots

Table Longitudinal Travel: 28"

Saddle Cross Travel: 14"

Knee Vertical Travel: 19"

Head Vertical Travel: 6"

Distance Spindle Nose to Table: 0" Minimum & 19" Maximum

Spindle Center Line to Vertical Knee Ways: 11-1/2"

Spindle Taper: #50 National Standard

Spindle Speeds: 50 to 1250 RPM

Feeds: 3/8 to 90 IPM



EQUIPPED WITH:

(4) Adjustable Table Cycle Dogs

Automatic Table Cycle

Soft Saddle Ways - Fair Condition

Side Operational Controls

4-Position Turret Type Head Down Feed Stops

Power Down Feed to Head

Coolant Piping

Bijur One Shot Lubrication System

(2) Vertical Head Feed Stop Dogs

(2) Saddle Feed Stop Dogs

(2) Vertical Knee Feed Stop Dogs

Manual Machine Tool Draw Bar

(1) 5/8" Diameter End Mill Tool Holder

(1) Milling Vise with 7-1/2" Wide x 2" High Jaws

No Vise Handle

MISSING - Manual Crank Handle for Side Operation Control

1/4 HP Coolant Pump Motor

3 HP Power Feed & Rapid Motor

20 HP Main Motor

Wired for 3 Phase, 60 Cycle, 220/440 Volts

Presently Wired for 440 Volts

Overall Dimensions: 78" L-R x 89" F-B x 88" H

This Machine is in Working Condition
