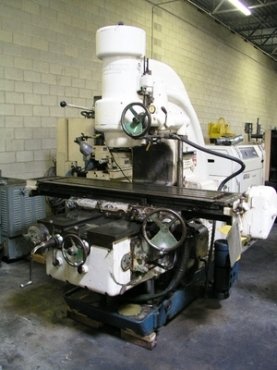

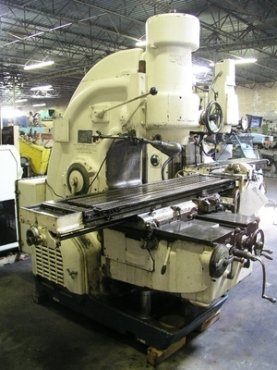

315-TF15 KEARNEY & TRECKER VERTICAL MILL
PRICE: Loaded on Truck, Our Warehouse, York, PA …… $7,950.00

Stock # 08129
Serial # 5/8379 New 1958 Model # 315-TF15

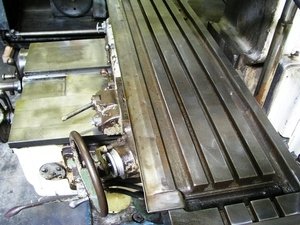

Table Size: 15-1/2" x 72"
Table Travel: 34"
Saddle Travel: 16"
Knee Vertical Travel: 16"
Head Vertical Travel: 4"
Maximum Distance Table to Spindle: Approx. 20"
(24) Spindle Speeds: 15 to 1500 RPM
Spindle Taper: #50
(32) Feeds: 3/8 to 80 IPM
Backlash Compensation for Climb Milling
4-Position Rotary Turret Stop with Dial Indicator for Head Travel
Manual Draw Bar
Coolant
Low Lead Attachment
Auto Table Cycle
Spindle Drive Motor: 15 HP, 3 Phase, 60 Cycle, 220-440 Volts
Feed Motor: 3 HP, 3 Phase, 60 Cycle, 220-440 Volts
Coolant Pump Motor: Approx. 1/4 HP

Overall Dimensions: 94" L-R x 102" F-B x 96" H
Weight: Approx. 11,500 Lbs.
