Description:

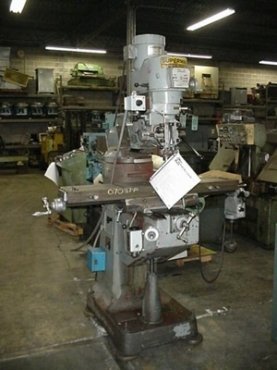

SUPERMAX VERTICAL MILLING MACHINE
PRICE: Loaded on Truck, Our Warehouse, York, PA …… $3,950.00
Stock # 07087-P
Serial # T 8106186 New 8/1992 Model # YC 1-1/2 VS-T
Table Size: 9" x 49" with (3) 5/8" T-Slots on 2-1/2" Centers
Spindle Taper: R-8
Variable Spindle Speeds Low: 60 to 4200 RPM
Quill Diameter: 3-3/8" (Outside Diameter)
Quill Travel: 5"
(3) Power Quill Feeds: .0015", .003" & .006"
Table Travel Longitudinal: 36"
Table Travel Cross: 12"
Knee Travel Vertical: 16"
Ram Travel: 12"
360 Degree Ram Turret Rotation
Maximum Distance from Spindle Nose to Table Top: 18-3/8"
Distance Spindle Center to Column Face: 19" Maximum, 6-3/4" Minimum
EQUIPPED WITH:
Servo Model # 140 Power Table Feed
Manual Draw Bar & One Shot Lubrication System
Chrome Saddle Ways in Good Condition
Lever Type Quill Handle
Meehanite Machine Casting
(4) Anti Vibration Mounting Pads
Missing Knee Crank Handle
3 HP Main Motor, Wired for 3 Phase, 60 Cycle, 220/440 Volts
Overall Dimensions: 64" L-R x 59" F-B x 84" H
________________________________________
Specifications:
SUPERMAX VERTICAL MILLING MACHINE
PRICE: Loaded on Truck, Our Warehouse, York, PA …… $3,950.00
Stock # 07087-P
Serial # T 8106186 New 8/1992 Model # YC 1-1/2 VS-T
Table Size: 9" x 49" with (3) 5/8" T-Slots on 2-1/2" Centers
Spindle Taper: R-8
Variable Spindle Speeds Low: 60 to 4200 RPM
Quill Diameter: 3-3/8" (Outside Diameter)
Quill Travel: 5"
(3) Power Quill Feeds: .0015", .003" & .006"
Table Travel Longitudinal: 36"
Table Travel Cross: 12"
Knee Travel Vertical: 16"
Ram Travel: 12"
360 Degree Ram Turret Rotation
Maximum Distance from Spindle Nose to Table Top: 18-3/8"
Distance Spindle Center to Column Face: 19" Maximum, 6-3/4" Minimum
EQUIPPED WITH:
Servo Model # 140 Power Table Feed
Manual Draw Bar & One Shot Lubrication System
Chrome Saddle Ways in Good Condition
Lever Type Quill Handle
Meehanite Machine Casting
(4) Anti Vibration Mounting Pads
Missing Knee Crank Handle
3 HP Main Motor, Wired for 3 Phase, 60 Cycle, 220/440 Volts
Overall Dimensions: 64" L-R x 59" F-B x 84" H
________________________________________
Dimensions:
64" x 59" x 84" H
Weight:
2200 (LBS)
