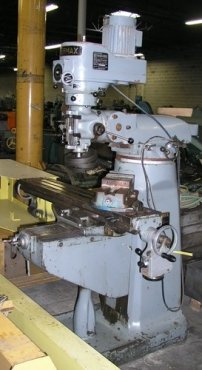

SUPERMAX VERTICAL MILL MACHINE
PRICE: Loaded on Truck, Our Warehouse, York, PA …… $4,500.00
Stock # 06353-P
Serial # 0914470 New 1984 Model # YC-1-1/2-VS
Table Size: 9" x 49"
Longitudinal Table Travel: 34"
Cross Travel: 12"
Vertical Knee Travel: 16"
Ram Travel: 12"
Spindle Speed Range: 60 to 4200 RPM Infinitely Variable
Spindle Taper: R-8
Quill Travel: 5"
(3) Quill Feeds: .0017, .0032, .0053 IPR
Head Tilts Front and Back: 45 Degrees
Head Swivels Left and Right: 90 Degrees
EQUIPPED WITH:
One Shot Lubrication System
Meehanite Machine Casting
(2) Adjustable Table Stops
Quill Handle, Manual Tool Draw Bar
Soft Saddle Ways in Very Good Condition
Table Top Surface is in Very Good Condition
6" Kurt Swivel Base Machine Vise - No Handle
(13) Assorted R8 Collects
2 HP Motor, Wired for 3 Phase, 60 Cycle, 230/460 Volts (Presently 220 Volts)
HMC Iinstalled All New Bearings in the Head & Spindle 3/2008 (and not used in service since)
Overall Size: 63" F-B x 94" L-R x 81" High x 2,200 Lbs.
