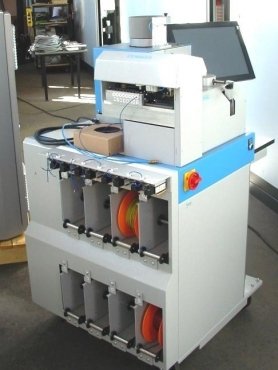

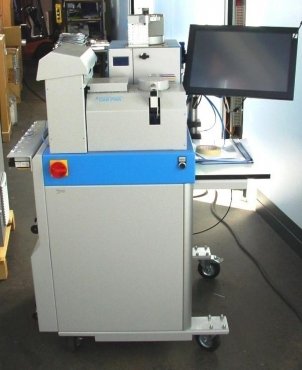

The STEINHAUER eCAB PWA (PWA stands for Personal Wiring Assistant) is a mobile wiring work place, that can be placed right next to the switchboard.
On site the conductors are being produced in individual length and furnished with sleeves if needed. Essential for the machine concept eCAB PWA is that the next conductor is being produced while the previous one is being inserted into the switch board.
Specifications eCAB PWA
Control: WAGO 750
Stripper-Crimper: Zoller & Froehlich UNIC LM, electric, for loose Z + F ferrules and plastic collars
Wire cross-section: 0.5 mm ² - 2.5 mm ² (AWG 20 - AWG 14)
Cable changer for up to 8 cables
Machine Dimensions (H x W x L): 1600 mm x 860 mm x 700 mm
Machine frame is easy to move on big wheels
Weight: 150 kg
Power supply: 110 - 230 V / 50/60 Hz
Networking: 10/100/1000 Mbps RJ45 Ethernet, optional wireless
Operating System: Microsoft ® Windows ® XP Professional
Controls: keyboard, trackball, TFT panel
Printer (optional) CAB A4 + for Partex PO tubing
The PWA is easy to install in electrical plan systems with routing software, like ePLAN Cabinet ®, HOS ELSCHRANK ® and others
