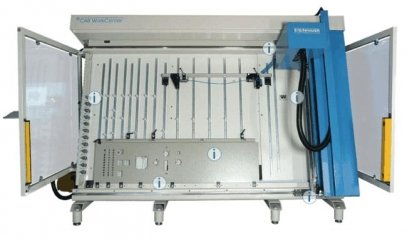

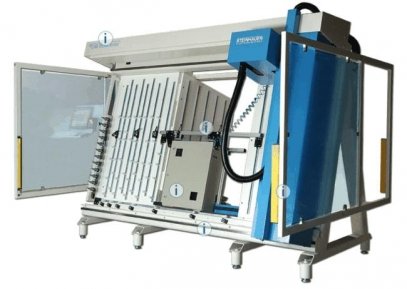

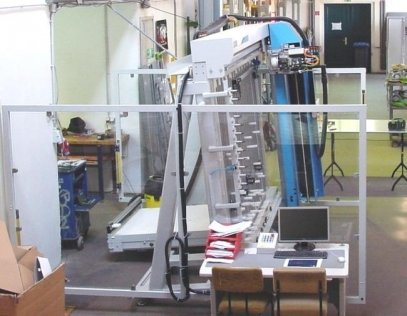

CNC-Machining Center for Panel Builders with Steinhauer Layout Software eCAB Sketch (for panel builders), factory price in 2011 was EUR 100.000,00 net
Technical Data
Machinable workpiece size, front . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1,550 x 2,400 mm
Enclosure processing hole size (H x W) . . . . . . . . . . . . . . . . . . . . . . . 1,600 x 1,050 mm
Machinable enclosure size (H x W x D) . . . . . . . . . . . . . .1,600 x 1,000 mm x 1,600 mm
Sheet thickness . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-10 mm
Max. cant-off height . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .70 mm
X-,Y-,Z-positioning speed (max. / typical) . . . . . . . . . . . . . . . . . . . 60 m/min. / 45 m/min.
Repeat accuracy (all axes) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.04 mm
Tool diameter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 - 20 mm
CNC High-Frequency Spindle ISO30/DIN69871. . . . . . . 7,5 kW/ 18,000 (24,000) min-1
Max. milling speed . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2,000 mm/min (3 mm steel)
Borers. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . D1-D20
Threads (1) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . M2-M63
Number of tools (Standard) . . .. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
CNC Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-Axes CNC Beckhoff
Machine dimensions (approx./mm) . . . . . . . . . . . . . . . . . . . . .W 3,490, D 2,500, H 2,350
Recommended maintenance area rear: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .500 mm
Recommended maintenance area left or right . . . . . . . . . . . . . . . . . . . . . . . . . . . 500 mm
Weight of machine (approx.) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2,800 kg
Power connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3L-N/PE 400V 50/60 Hz, 32A fuse
Compressed air . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-8 bar, max. 300 l/min.
1) M16-M63 with circular milling option
Accessories:
+Chip Extraction Option for automatic removal of milling chippings, approx. 90% chip
catch, incl. Kaercher low-noise industrial vacuum
+Terminal box holder for batch processing of multiple small enclosures. Single row
+Terminal box holder for batch processing of multiple small enclosures. Tripple row
+Engraving Option for holohedral engraving with height compensation for bent
workpieces, incl. SK30 collet, ER32 metal chuck, engraving toolbit, software
+Circular Milling Option for milling of large threads (M16-M63) in thick-walled material,
consisting of tool expansion, cirular milling tool w. exchangable milling blade and
software extension
+Bus-Bar Holder for mounting of multiple copper bus bars up to a length of 2,400 mm
and a thickness of 10 mm, 1 set of 2 holders.
+Magnetic Hand Brush with quick releaser, for easy removal of ferromagnetic chips

-
