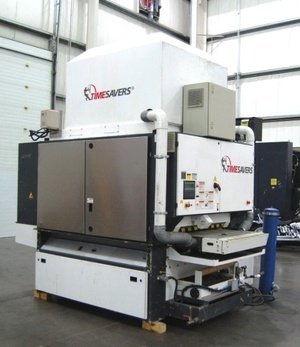

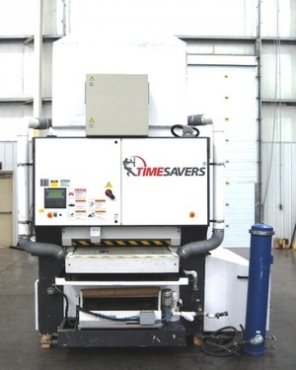

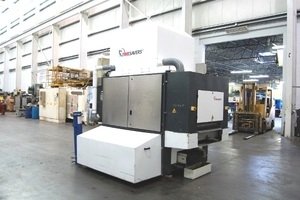

35" TIMESAVER WET TYPE BELT SANDER
& DISC DEBURRING/FINISHING MACHINE
PRICE: Loaded on Truck, Our Warehouse, York, PA …… $64,500.00
Stock # 12153-P
Serial # 2322-13 New 2003 Model # 41-SERIE-900-WRD
Width of Conveyor Belt: 35.43" (900 mm)
Abrasive Belt: 36.6" Wide x 74.8" Long
Disc Diameter: 48"
Bed Opening: 0 to 3"
Minimum Part Size: 3" x 3"
1st Head - Sanding:
Contact Roller Head: 7.09" Diameter
Contact Roller Shore: 65 Degrees
Grinding Speed: 1500 to 4300 FPM
2nd Head - Disc Deburring/Finishing:
Speed: 1960 to 4300 FPM
Feed:
Fixed Vacuum Conveyor Table
Conveyor Belt: Oil & Heat Resistant, Flat Profile
Feed Speed: 3 to 32 FPM
EQUIPPED WITH:
E300 Mitsubishi Control Panel
Front Pressure Rollers with Over-Thickness Safety
1st Head:
Electric Oscillation
Fine Adjustment of Contact Roller with Rise & Fall
Main Motor: 15 KW (20 HP) Frequency Control
2nd Head - Disc:
Motorized Height Adjustment
6.9 KW (9 HP) Frequency Controlled Motor
EQUIPPED WITH:
Feed:
Belly Brake
Motorized Height Adjustment of Conveyor Bed Opening, Frequency Inverted
Lindomatic Table Adjustment
Conveyor Motor 1.3 KW (1.7 HP) Frequency Inverted
Bolt-On Dryer:
Double Air Knives
(6) Squeeze Rollers
Conveyor Belt Tracking
Abrasive Belt Tracking
27" Infeed Loading Area
Quick Release Outboard Support for 1st Head
(4) Bed Jacks
Dial Indicators on Drum
Construction: Part Stainless Steel/Part Mild Steel
Integrated Hoffmann Paper Coolant Filter System
Manual for Machine
Wired for 3 Phase, 60 Cycle, 460 Volts
Overall Size: 130" L-R x 97" F-B x 128" H
(Height Can be Reduced for Shipping)
