Description:

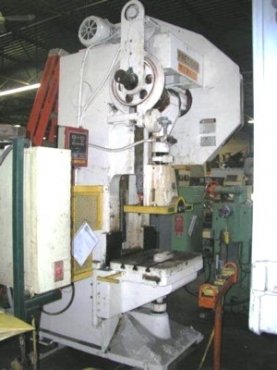

60 TON PRECISION INDUSTRIES ADJUSTABLE BED GAP FRAME PRESS
PRICE: Loaded on Truck, Our Warehouse, York, PA
Stock # 07335
Serial # PN0002New 1994Model # 60AB
8" Stroke
2-1/2" Adjustment
10" to 21" Shut Height
90 Strokes Per Minute
Throat Depth: 11-1/2"
Bed Size: 21" F-B x 32" L-R
Ram Face: 16" F-B x 21" L-R
Vertical Adjustment of Bed: Approx. 11"
EQUIPPED WITH:
Air Clutch & Brake
T-Slotted Bolster Plate: 21" x 32" x 2-1/2"
Wintress WPC Clutch/Brake Control
Wintress Autoset 1500 Load Analyzer
Press Controls for Inch, Single & Continuous Stroke
Selector Switch for Flywheel Brake On & Off
(4) Corner Light Curtains with Bypass Switch
Main Motor Run, Forward & Reverse
Top Stop
Operator Pedestal with Dual Palm Buttons & Emergency Stop Button
Lincoln Auto Lube System
5 HP Induction Motor, Wired 3 Phase, 60 Cycle, 230-460 Volt
Overall Dimensions: 84" F-B x 72" L-R x 132-1/2" H Sitting on Press
Mounting Pads, 130" H without Pads
Specifications:
60 TON PRECISION INDUSTRIES ADJUSTABLE BED GAP FRAME PRESS
Loaded on Truck, Our Warehouse, York, PA
Stock # 07335
Serial # PN0002 New 1994 Model # 60AB
8" Stroke
2-1/2" Adjustment
10" to 21" Shut Height
90 Strokes Per Minute
Throat Depth: 11-1/2"
Bed Size: 21" F-B x 32" L-R
Ram Face: 16" F-B x 21" L-R
Vertical Adjustment of Bed: Approx. 11"
EQUIPPED WITH:
Air Clutch & Brake
T-Slotted Bolster Plate: 21" x 32" x 2-1/2"
Wintress WPC Clutch/Brake Control
Wintress Autoset 1500 Load Analyzer
Press Controls for Inch, Single & Continuous Stroke
Selector Switch for Flywheel Brake On & Off
(4) Corner Light Curtains with Bypass Switch
Main Motor Run, Forward & Reverse
Top Stop
Operator Pedestal with Dual Palm Buttons & Emergency Stop Button
Lincoln Auto Lube System
5 HP Induction Motor, Wired 3 Phase, 60 Cycle, 230-460 Volt
Overall Dimensions: 84" F-B x 72" L-R x 132-1/2" H Sitting on Press
Mounting Pads, 130" H without Pads
