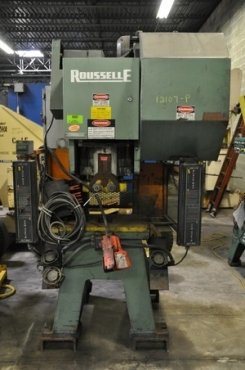

32 TON ROUSSELLE GAP FRAME BACK GEARED PUNCH PRESS
PRICE: Loaded on Truck, Our Warehouse, York, PA …… $5,950.00

Stock # 12107-P
Serial # P-32303 New 1985 Model # G1-32
Made by the Heim Group
Capacity: 32 Ton
Stroke Speed: 140 SPM
Stroke Length: 2"
Shut Height: 10-1/2"
Ram Adjustment: 4"
Ram Size: 12" L-R x 9" F-B
Ram Hole Size: 2"
Centerline of Ram to Frame: 8-1/4"
Distance Between Frames: 16"
Bed Size: 24" L-R x 15" F-B
Bolster Plate Size: 24" L-R x 15" F-B x 1-1/2" Thick
Distance Floor to Top of Bolster Plate:
EQUIPPED WITH:
Air Clutch and Brake with Ross Valve System
Link Electric Blackmax Light Safety Curtain System
Dual Hand Palm Trip Buttons and Foot Pedal
Clutch Controls for: Off, Inch, Single and Continuous
Cycles for: Run, Bar, Set Up and Top Stop
Manual Ram Adjustment
Bijur Centralized Forced Lubrication System
Ram Air Counter Balance Cylinders
Ram Knock-Out Bar
Machine Work Light
Air Regulators and Pressure Gages
Air Surge Tank
Overall Size for Shipping: 52" L-R x 67" F-B x 84" H x 5,500 Lbs.
