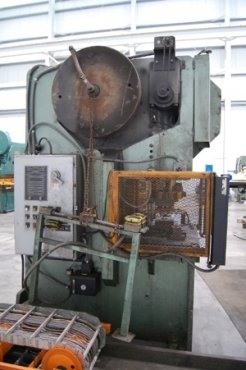

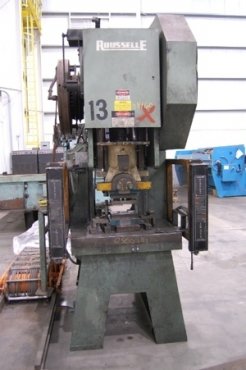

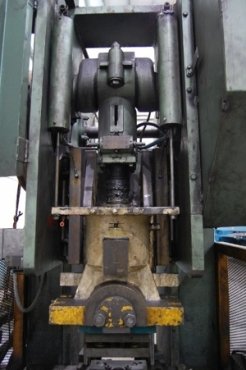

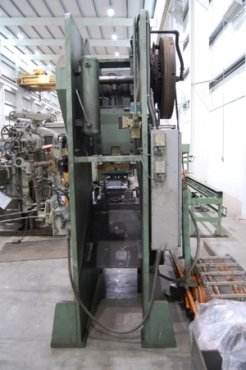

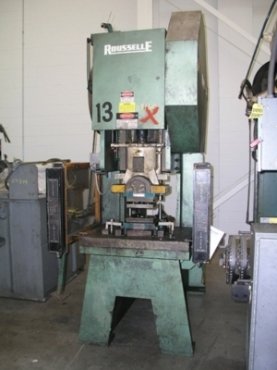

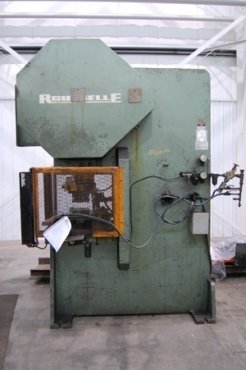

95 TON ROUSSELLE GAP FRAME BACK GEARED PUNCH PRESS
PRICE: Loaded on Truck, Our Warehouse, York, PA
Stock # 08160
Serial No. P-32772 New 1985
Model No. G1-9514
Made by the Heim Group
Capacity: 95 Ton
Stroke Speed: 50 SPM
Stroke Length: 4"
Shut Height: 16-1/2"
Ram Adjustment: 4"
Air Clutch and Brake with
Ross Valve System
Link Electric Blackmax Light Safety
Curtain System
Hand Palm Trip Buttons
Clutch Controls: Off-Inch-Single-Continuous
Cycles for: Run-Bar-Set Up-Top Stop
Manual Ram Adjustment
Bijur Centralized Forced Lubrication System
Missing Flywheel and Brake Cover
Ram Air Counter Balance Cylinders
Ram Knock-Out Bar
Ram Size: 18-1/4" L-R x 12" F-B
Ram Hole Size: Unknown
Centerline of Ram to Frame: Approx. 15"
Distance Between Frames: 20-1/4"
Bed Size: 36" L-R x 26" F-B

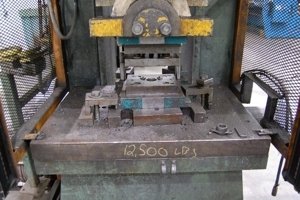

Bolster Plate Size: 26" x 36" x 3" Thick
Distance Floor to Top of Bolster Plate: 39"
Machine Work Light
Air Regulators and Pressure Gages
Air Surge Tank
Overall Size for Shipping: 58" L-R x 86" F-B x 110" H
