Stock # 01122

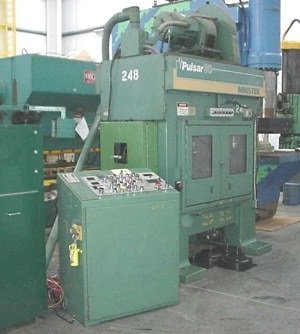

30 TON MINSTER PULSAR STRAIGHT SIDE PRESS
Serial # TR2-30-25072
New 1981
Model # TR2-30
Capacity: 30 Tons
Stroke: 1"
SPM: 100 to 1400
Adjustment: 1-3/4" (Power Adjustment with Digital Indicator)
Shut Height: 9" Over 4.120" Thick Bolster
Bed Area: 30" L-R x 21" F-B
Ram Face: 30" L-R x 12" F-B
Opening in Bolster: 26" L-R x 4" F-B
15-3/8" Wide Windows
Minster Heavy Duty Hydraulic Operated Friction Clutch & Brake
Counterweighted Drive System Provides 100 Degree Dynamic Balance of Slide
Recirculating Oil System
Slide Guided by Six-Post Guiding System
Acoustical Die Doors on Front & Rear of Press for Noise Reduction
Vamco MV6 Adjustable Feed from Left to Right
Maximum Material Width: 6"
Maximum Thickness: .062
Feed Length: 0 to 4"
Bolster Plate: 30" L-R x 21" F-B x 4.120" Thick with (7) 11/16" T-Slots
Running the 21" Width
Upper Die Plate Bolted to Ram: 34-1/2" L-R x 12" F-B x 1-1/8" Thick
Operator Console with Full Press Controls for: SPM, Digital Tach,
Load Meter & Past Preset Counter
Feed Length Digital Display
(4) 13" Diameter Air Cushion Press Mounting Pads
25 HP, 3 Phase, 60 Cycle, 230/460 Volt Motor Driving a Louis Allis
Adjusto Spede DC Drive
Press Overall Dimensions: 90" L-R x 55" F-B x 120" H Without Mounting Feed
Operator Console: 41" L-R x 24" F-B x 46" H
Approx. Weight: 20,000 Lb.
F.O.B. OUR WAREHOUSE, YORK, PA
Specifications:
75 TON MINSTER OBI PUNCH PRESS
PRICE: Loaded on Truck, Our Warehouse, York, PA …… $16,500.00
Stock # 12155
Serial # 7D-19850 New 1970 Model # 7D-OBI
Tonnage: 75
Bolster Size: 36" L-R x 24" F-B
Strokes Per Minute: 75 to 150
Stroke Length: 4"
Slide Adjustment: 3.75"
Shut Height (SDAU): 21"
Distance Between Frames: 19"
Ram: 30" L-R x 17" F-B
Throat: 11-1/2"
EQUIPPED WITH:
Metal-Tech Equipment Corp. "Jobber Plus" Control
Power Slide Adjustment
Air Counterbalance to Ram
Air Clutch
4" Bolster Plate
Press Manual
10 HP Main Motor, Wired for 3 Phase, 60 Cycle, 230/460 Volts
DIMENSIONS:
Press: 72" L-R x 96" F-B x 135" H x 19,000 Lbs.
Control: 20" L-R x 20" F-B x 46" H
Electrical Box: 28" L-R x 32" F-B x 77" H
