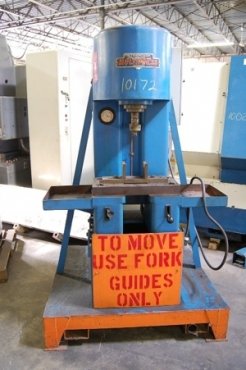

8 TON DENNISON HYDRAULIC PRESS
PRICE: Loaded on Truck, Our Warehouse, York, PA

Stock # 10172
Serial # 7217 Model # FG8C61C21A68S06

Bed Size: 22" L-R x 14" F-B with U-Shaped Slot in Bed 6" L-R x 10" F-B
Distance from Floor to Bed: 40-1/2"
Ram Diameter: 2"
Ram Stroke: Approx. 12"
Maximum Daylight: 17-1/2"
Throat: 8-1/2"
Tonnage Adjustment Valve
Tonnage Gauge: 0 to 8 Tons
Ram Stop Bar Clamped to Ram with Adjustable Stop Collars for Down & Return Stroke
Dual Hand Lever Actuated
Disconnect Box on Side of Press
7-1/2 HP Motor, Wired 3 Phase, 60 Cycle, 220-440 Volts

Machine Overall Size Mounted on Metal Platform: 49" L-R x 43" F-B x 180" H
Press is Bolted to a 10" High Metal Stand
