Description:

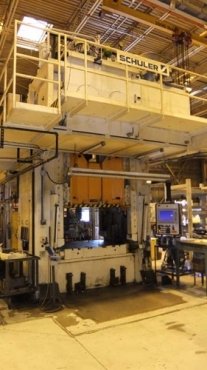

220 TON SCHULER HYDRAULIC PRESS
PRICE: Loaded on Truck, York, PA ………………..… $195,000.00
Stock # 10130
Serial # H/7610 New 2001 Model # HPDZb200
PRELIMINARY SPECIFICATIONS:

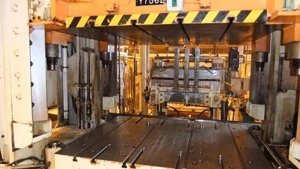

Bed Size: 63" x 55" Tee Slotted
Ram Face: 63" x 55" Tee Slotted
Ram Stroke: 35.4"
Maximum Ram Speed: 15.75 Inches Per Second (945 IPM)
Minimum Ram Speed: 1.85 Inches Per Minute
Maximum Daylight: 36" Over 9" Thick Bolster Plate
24" Wide Windows
69.4 Ton Capacity Bed Cushion, 17.7" Stroke, CNC Controlled
3.3 Ton Ejector in Ram with 9.45" Ejector Stroke
Maximum Weight of Upper Die: 6,615 Lbs.
Maximum Offset Ram Load Left & Right: 147,520 Lbs.
Maximum Offset Ram Load Front & Back: 73,760 Lbs.

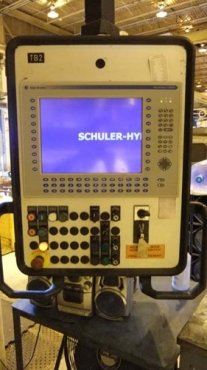

Allen Bradley Versa View 1500 PLC Control
Pendant Mounted Control
(4) Snap Thru Dampening Devices
200 HP Main Motor
Heat Exchanger & Oil Cooler
Schuler Servo Roll Feed, Maximum Material Width: 36"
Schuler Straightener, 36" Wide, Maximum Material Thickness: .055"
Schuler Motorized Uncoiler, 5,000 Lb. Capacity
Maximum Width: 36x 43" O.D., Coil I.D.: 18-1/2" to 20.9"
Coil Car, Feed Line Control Console & Operator Pendant with Auto Threading,
Job Memory & Motorized Adjustable Passline Height
Specifications:
220 TON SCHULER HYDRAULIC PRESS
PRICE: Loaded on Truck, York, PA ………………..… $195,000.00
Stock # 10130
Serial # H/7610 New 2001 Model # HPDZb200
PRELIMINARY SPECIFICATIONS:
Bed Size: 63" x 55" Tee Slotted
Ram Face: 63" x 55" Tee Slotted
Ram Stroke: 35.4"
Maximum Ram Speed: 15.75 Inches Per Second (945 IPM)
Minimum Ram Speed: 1.85 Inches Per Minute
Maximum Daylight: 36" Over 9" Thick Bolster Plate
24" Wide Windows
69.4 Ton Capacity Bed Cushion, 17.7" Stroke, CNC Controlled
3.3 Ton Ejector in Ram with 9.45" Ejector Stroke
Maximum Weight of Upper Die: 6,615 Lbs.
Maximum Offset Ram Load Left & Right: 147,520 Lbs.
Maximum Offset Ram Load Front & Back: 73,760 Lbs.
Allen Bradley Versa View 1500 PLC Control
Pendant Mounted Control
(4) Snap Thru Dampening Devices
200 HP Main Motor
Heat Exchanger & Oil Cooler
Schuler Servo Roll Feed, Maximum Material Width: 36"
Schuler Straightener, 36" Wide, Maximum Material Thickness: .055"
Schuler Motorized Uncoiler, 5,000 Lb. Capacity
Maximum Width: 36x 43" O.D., Coil I.D.: 18-1/2" to 20.9"
Coil Car, Feed Line Control Console & Operator Pendant with Auto Threading,
Job Memory & Motorized Adjustable Passline Height
