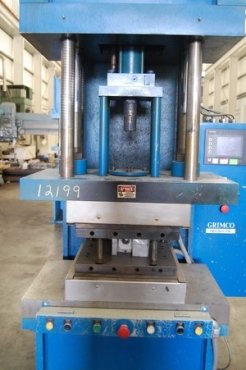

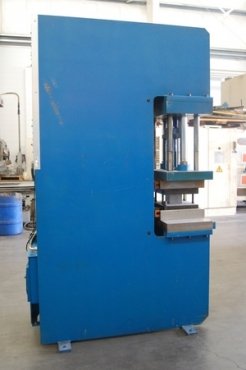

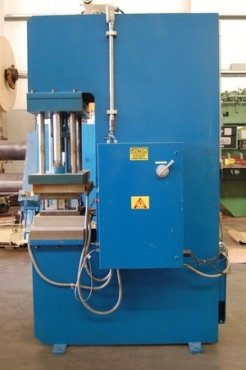

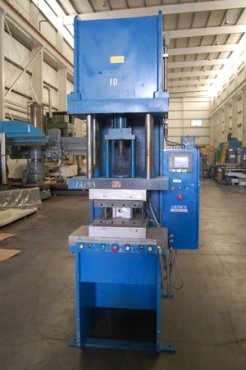

GRIMCO HYDRAULIC COMPRESSION MOLDING PRESS
PRICE: Loaded on Truck, Our Warehouse, York, PA …… $12,500.00
Stock # 12199
Serial # 43901107-2 New November 2007
Was Used for Compression Molding Rubber
Rated Capacity: 30 Ton
Electrically Heated Platen System on Bed and Ram: 15" L-R x 13-3/8" F-B
Press Bed Size: 16-5/8" F-B x 30" L-R x 1-7/8" Thick
Bed Bolster Plate: 16-5/8" F-B x 30" L-R x 3" Thick
Centerline of Bed and Ram to Machine Frame: 12-1/8"
Vertical Ram Stroke Length: Unknown
Dual Operation Palm Buttons
Red Lion Digital PLC Control System
Manual Switches For: System: Manual-Auto Control: On-Off
Pump: On-Off Emergency Stop
Hydraulic Oil Heat Exchanger System
7-1/2 HP Hydraulic Pump Motor
Wired for 3 Phase, 50/60 Hz, 208-230-460-380 Volts
.33 HP Heat Exchange Fan Motor, Wired for 230-460 Volts
Machine Appears to be in Good As Taken From Service Condition
Overall Size: 39" L-R x 68" F-B x 108-1/2" High x 7,800 Lbs.
