Description:

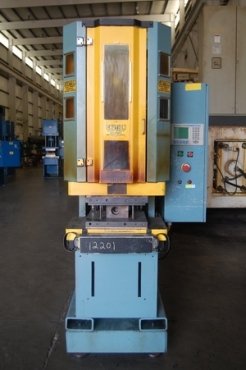

TWIN PINES COMPRESSION MOLDING PRESS
PRICE: Loaded on Truck, Our Warehouse, York, PA …… $12,500.00
Stock # 12201
Serial # TPM-30-T-I-2002-306 New 2002 Model: TPM-30-T-I
Was Used for Compression Molding Rubber
Rated Capacity: 30 Ton
Dual Trip Finger Buttons
Upper Platen Injection System
Electrically Heated Platen System on Bed and Ram
Heated Platen Size: 16" x 16"
Press Ram Size: 25" L-R x 16" F-B x 3-1/2" Thick
Press Bed Size: 15-1/2" F-B x 26-1/2" L-R x 3" Thick (Work Area)
Distance Thru Frames: 19"

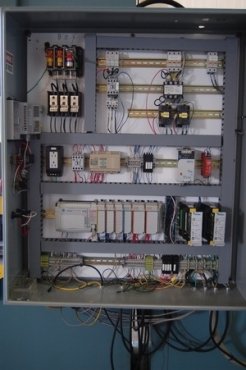

Allen Bradley Panel View Plus 600 PLC Control
Buttons For: Control Power On-Off, Hydraulic Start-Stop and
Emergency Stop
(4) Adjustable Machine Leveling Feet

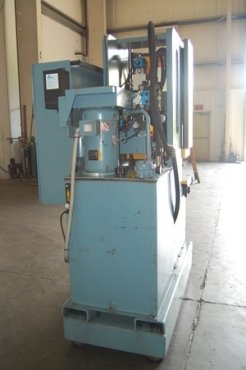

Hydraulic System Attached to Rear of the Machine
Hydraulic Oil Heat Exchange Unit
10 HP Baldor Hydraulic Motor, 1760 RPM
Wired for 3 Phase, 60 Hz, 208-230-460 Volts
Daylight (Ram to Bed Max.): 16-1/4"

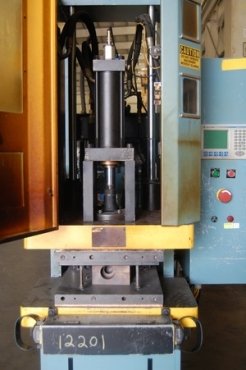

Vertical Transfer Mold Press Hydraulic Piston on Ram for Molding
Stroke Length: Unknown
Machine Appears to be in Good As Taken From Service Condition
Overall Size: 43" L-R x 71" F-B x 92" High x 6,500 Lbs.
