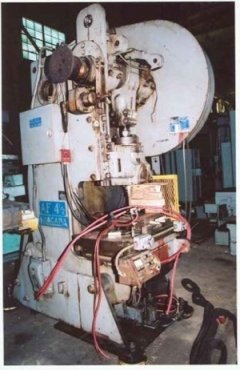

75 TON NIAGARA OBI PRESS
PRICE: F.O.B. WILMINGTON, DE



Serial # 38642 New 1963 Model # AF-4 1/2

Stock # 05333-P

Rating of Press: 75 Tons

Safe Capacity Near Bottom of Stroke: 90 Tons

Diameter of Shaft at Main and Connection Bearings: 4-1/2" to 6-3/4"

Stroke: 4"

Variable Speeds: 60 to 120 SPM

Ram Adjustment: 3-3/8"

Throat Depth: 12-1/2"

Slide Area: 15" x 17-1/8"

Distance Between Gibs: 13-1/4"

Bed Area: 36" x 24"

Rectangular Opening in Bed: 18" x 14"

Width of Opening in Back: 20"



EQUIPPED WITH:

Electro-Pneumatic Friction Clutch and Brake

Flywheel Design

Bolster Plate

Air Counter Balance of Ram

Dual Palm Controls

7-1/2 HP, 3/60/220-440 Variable Speed Drive with Controls

Overall Dimensions: 66" L-R x 90" F-B x 129" H

Approx. Weight: 13,000 Lbs.
