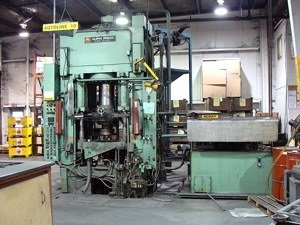

750 TON ALPHA MODEL 700/D3-052 POWDER METAL COMPACTING PRESS

General Specifications
Tonnage capacity, Rated 750 T
Upper Cylinder Bore 20"
Upper cylinder, Stroke 25"
Lower die table 8"
Lower die table, Stroke 20"
Under fill cylinder, Bore 2"
Under fill cylinder, Stroke 1"
Feeder cylinder, Bore 2"
Feeder cylinder, Stroke 20"
Lower cylinder, Bore 20"
Lower cylinder, Stroke 15"
Lower ram aux cylinder, Bore 4"
Lower ram aux cylinder, Stroke 7.75"
Upper ram cylinder, Bore 4"
Upper ram cylinder, Stroke 1.25

Hydraulic Motor
Horsepower: 40 HP
Oil Reservoir 500 Gallons

Approximate weight 50,000 lbs.
Tank 15,000 lbs.

Serial Number 750-052
Year 1969
