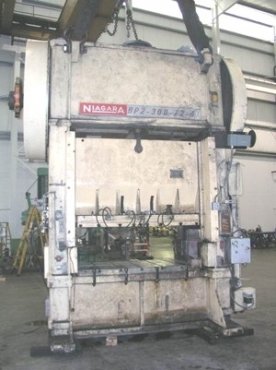

300 TON NIAGARA STRAIGHT SIDE DOUBLE CRANK PRESS
WITH COIL FEED & STRAIGHTNER SYSTEM
PRICE For Complete System: Loaded on Truck, Our Warehouse, York, PA ……
Stock # 07265
Serial # 43875New 1966Model # BP2-300-72-42
Rated Capacity is 300 Ton 1/2" From Bottom of Stroke
Stroke: 5"
Stroke Speeds: 45 to 90 SPM Variable
Shut Height: 23" to Bed (SDAU)
Ram Adjustment: 6"
Ram and Bed Size: 42" x 72"
Bed Area Opening: 27" F-B x 58" L-R
Bed to Gibs: 17"
Distance Between Frames: 81-1/4"
Ram Bolster Plate Size: 72" x 42" x 2-1/2" Thick with (9) T-Slots
Bed Bolster Plate Size: 72" x 42" x 3-1/2" Thick with (5) T-Slots
Distance Floor to Bolster Top of Bed: 38"
Air Counter Balance of Ram: 0 to 19,100 Lbs with 46 to 110 PSI Air Pressure
Side Frame Window Size: 26-3/4" Wide x 20" High
Input Air Pressure Required: 55 PSI for Operation, 35 PSI Minimum
EQUIPPED WITH:
Link Logic Model # SS-501 Press Controls with Lite Safety Curtains, New 1987
Electrical Schematics – Parts and Operations Manuals for Machine and Safety Curtains
NO Bed Cushion System
Machine Foundation Prints
Air Friction Clutch and Brake with Selector Controls
Tie Rod Construction
New, still in the box, Ameridrive Clutch Assembly
model LK-221, new 1999, asembly # 205370, so# 101893
8 Point Gibbing
Twin End Drive Enclosed Gears Running in Oil
Crankshaft Extension Left Hand Side
Dual Air Storage Tanks on Top of Machine
Assorted Used Spare Machine Parts
Floor Mounted Zone Ztyle Lite Safety Curtain System
Machine and Feed Motor and Belt Guarding
Machine and All Components are Flush Floor Design
Adjustable Pressure Controls and Gages for Air Clutch and Air Counter Balance
Rotary Cam Limit Switch
CONTROL PANEL:
Free Standing Style
(1) Set of Dual Palm Trip Buttons Mounted on Control Panel
Link Safety System Controls Mounted to Main Control
Speecon Variable Speed Stroke Control
Electric Dual Finger Trip Buttons on Remote Pendant
MOTOR SYSTEM:
60 HP (45 KW) Main Drive Motor, 1765 RPM, 140/70 Amps
Wired for 3 Phase, 60 Cycles, 230/460 Volts
Teco ED Drive Coupling Attached to Main Motor
Type VSED – AC, 50/60 Hz, 1800 RPM
Speed Range 1650 – 165
With Tacho Generator
Motor and Coupling System New 1988
VAMCO ROLL FEED:
Serial # F20418T1L, Model # 4-25/30 Servo Push Type
15"Maximum Width of Material
(2) 6" Wide Pinch Type Material Gripper Rolls
Cog Belt Driven Drive From Press with Guarding
Assorted Change Gears for Feed Rate
Material Thickness Rating Unknown
Feed Direction Right to Left
Roll Finish: Crodon
Has Assorted Change Gears for Feed Length
Have Drawings, Manuals and Schematics
SESCO FEEDER & STRAIGHTNER UNIT:
Serial # 18282, Model # 56:142
Coil Weight Capacity: 20,000 Lbs.
Stock Width: 30"
Stock Gauge .060" to .105" Mild Steel
(3) Adjustable Straightner Rolls on Top
Hydraulic Pinch of Material Gripper Rolls at Each End
Feeder and Straightner Rolls Recently Reconditioned and Hard Chromed
Rolls are in Excellent Condition
Hydraulic Driven Motor Drives Chain Driven Rolls
(4) Hydraulic Control Levers
Push Button Controls for: Auto, Manual, Start, Stop, Forward, Reverse, Feed Forward, Feed Reverse
(2) Adjustable Vertical Style Material Guide Rollers
Electric Eye Loop Sensor
GE Fanuc Series 90/30 PLC Controller
Operators/Maintenance Manual and Electrical Schematics
Distance Floor to Material Exit Point: Approx. 47" +/-
25 HP Vickers Hydraulic Pump and Tank System
Wired for 3 Phase, 60 Cycle, 230/460 Volts
(6) Spare Used Feed Roller Shafts for Straightner
SESCO COIL CRADLE:
Driven by a 1-1/2 HP Motor Connected to a Comtrac Adjustable Speed Drive Unit with Air Activated Disc Brake System
Material Support Rolls were Recently Reconditioned and Hard Chromed – They are in Excellent Condition
Hand Crank Width Adjustment of Coil Keeper Walls
Coil Width Capacity: 0 to 32" Wide
Coil Walls have Replaceable Wear Strips
Wall Size: 53" F-B x 48" High
This Unit Bolts to the Feeder Straightner Unit
Drive Assembly Unit Bolts to Floor
SESCO COIL LOADER UNIT:
Serial # 18287, Model # 47-209
Tilting Table Size: 50" x 49"
Distance Floor to Table Top: 28" +/-
Coil Guide Rail Size: 59" Long x 29" High
Guide Rail is Bolted to the Table and is Adjustable for Positions
Hydraulic Up Acting Table
This Unit Bolts to the Coil Cradle
OVERALL SIZE FOR SHIPPING:
Wood Crate with Assorted Parts: 53" x 91" x 38" High x Approx. 700 Lbs.
Skid with Safety Curtain System: 77" x 60" x 21" High x Approx. 250 Lbs.
Control Unit: 47" x 29" x 91" High x Approx. 750 Lbs.
Hydraulic System: 63" x 45" x 46" High x Approx. 1,000 Lbs.
Vamco Feed System on Skid: 40" x 47" x 30" High x Approx. 2,000 Lbs.
Feeder & Straightner Unit: 69" x 108" x 70" High x Approx. 8,000 Lbs.
Coil Cradle: 81" L-R x 67" F-B x 74" High x Approx. 6,000 Lbs.
Coil Cradle Drive Unit: 54" L-R x 48" F-B x 33" High x Approx. 1,000 Lbs.
Coil Loader Unit: 59" L-R x 79" F-B x 57" High x Approx. 6,000 Lbs.
Feed and Coil Handling Equipment May be Purchased Separately…POR

75 TON NIAGARA OBI PRESS
PRICE: F.O.B. WILMINGTON, DE



Serial # 38642 New 1963 Model # AF-4 1/2

Stock # 05333-P

Rating of Press: 75 Tons

Safe Capacity Near Bottom of Stroke: 90 Tons

Diameter of Shaft at Main and Connection Bearings: 4-1/2" to 6-3/4"

Stroke: 4"

Variable Speeds: 60 to 120 SPM

Ram Adjustment: 3-3/8"

Throat Depth: 12-1/2"

Slide Area: 15" x 17-1/8"

Distance Between Gibs: 13-1/4"

Bed Area: 36" x 24"

Rectangular Opening in Bed: 18" x 14"

Width of Opening in Back: 20"



EQUIPPED WITH:

Electro-Pneumatic Friction Clutch and Brake

Flywheel Design

Bolster Plate

Air Counter Balance of Ram

Dual Palm Controls

7-1/2 HP, 3/60/220-440 Variable Speed Drive with Controls

Overall Dimensions: 66" L-R x 90" F-B x 129" H

Approx. Weight: 13,000 Lbs.
