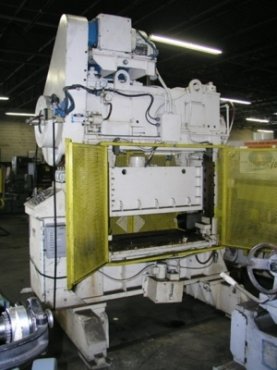

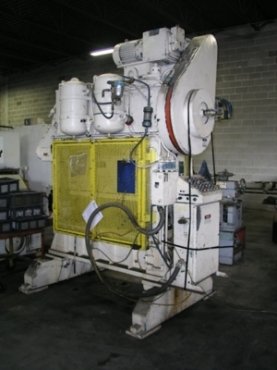

32 TON PERKINS STRAIGHT SIDE SINGLE CRANK PRESS
PRICE: Loaded on Truck, Our Warehouse, York, PA
Stock # 08161
Serial No. 46367 New 1984
Model No. 32-T
Ram Stroke: 1-3/4"
Bed Size: 20" x 42"
Shut Height: 9-1/4"
Ram Adjustment: 3"
Air Clutch with Single Ross Valve
Remote Operators Station
Forced Central Lubrication System
20" x 42" x 2" Thick Bolster Plate with
4" Wide x 30" Long Center Cut Out
No Bolster on Ram
Replaceable and Adjustable Ram Way Gibbing
Motorized Ram Adjustment
Variable Speed Drive with Remote Speed Control
9-1/2" Wide x 10" High Windows Each Side of Press
Note: Window Width Can Go to 11" with Minor Change
Adjustable Air Counter Balance to Ram
Work Area Guarding
Control Cycles: Inch-Single-Continuous and Run-Bar
Hand or Foot Control - No Foot Pedal or Palm Buttons
Air Brake
Dual Air Surge Tanks PIC1
Feed Mounting Bracket on Right Side of Press
Clutch is on the Left Side of Press
? HP Motor, Wired for 3 Phase, 60 Cycle, 230/460 Volts
Overall Size for Shipping: 93" L-R x 58" F-B x 114" H
