Description:

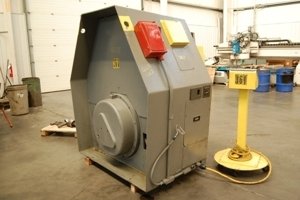

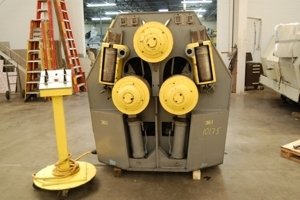

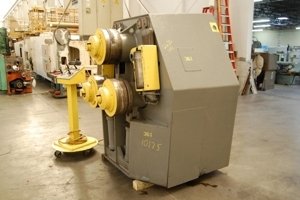

PULLMAX HYDRAULIC ANGLE BENDING ROLL
PRICE: Loaded on Truck, Our Warehouse, York, PA …… $40,000.00
Stock # 10175
Serial # 53300-07 New 1968 Model # Z-41
Diameter of Rolls: 15-11/16"
Speed of Rolls Forward & Reverse: 8 RPM
Vertical Adjustment of Bottom Rolls: 8-1/4" (Hydraulic)
Guide Rolls Vertical Adjustment: 6" (Hydraulic)
Guide Rolls In & Out Adjustment: 5-1/2" (Hydraulic)
All 3 Rolls are Driven

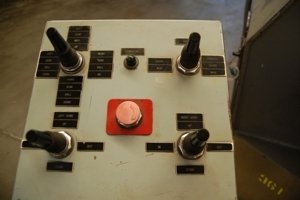

Free Standing Operator Console with Joystick Controls
Scales to Measure Vertical Travel of Rolls
11 KW, 3 Phase, 60 Cycle, 220-440 Volts (Presently Wired 440 Volts)
Angle Bending Capacity Leg Out: 5" x 5" x 1/2" Maximum
Angle Bending Capacity Leg Out: 1-3/4" x 1-3/4" x 1/4" Minimum
Angle Bending Capacity Leg In: 4" x 4" x 1/2" Maximum
Angle Bending Capacity Leg In: 1-3/4" x 1-3/4" x 1/4" Minimum
Flat Bar on Edge: 5" x 3/4"
Flat Bar, Easy Way: 8" x 1-1/2"
Square Bar: 2-3/4" x 2-3/4"
Round Bar: 3"
I-Beams, Taper Flanges Web Parallel to Bending Axis: 10" x 4" Maximum
I-Beams, Taper Flanges Web Parallel to Bending Axis: 3" x 2-3/8" Minimum
I-Beams, Flanges Parallel to Bending Axis: 4" x 2-5/8" Maximum
I-Beams, Flanges Parallel to Bending Axis: 3" x 2-3/8" Minimum
Channels, Flanges Out: 10" x 2-5/8" Maximum
Channels, Flanges Out: 3" x 1-1/2" Minimum
Channels, Flanges In: 10" x 2-5/8" Maximum
Channels, Flanges In: 3" x 1-1/2" Minimum
Machine Overall Dimensions: 5' F0B x 70" L-R x 75" H
Machine Weight: 12,750 Lbs.
Specifications:
PULLMAX HYDRAULIC ANGLE BENDING ROLL
PRICE: Loaded on Truck, Our Warehouse, York, PA …… $40,000.00
Stock # 10175
Serial # 53300-07 New 1968 Model # Z-41
Diameter of Rolls: 15-11/16"
Speed of Rolls Forward & Reverse: 8 RPM
Vertical Adjustment of Bottom Rolls: 8-1/4" (Hydraulic)
Guide Rolls Vertical Adjustment: 6" (Hydraulic)
Guide Rolls In & Out Adjustment: 5-1/2" (Hydraulic)
All 3 Rolls are Driven
Free Standing Operator Console with Joystick Controls
Scales to Measure Vertical Travel of Rolls
11 KW, 3 Phase, 60 Cycle, 220-440 Volts (Presently Wired 440 Volts)
Angle Bending Capacity Leg Out: 5" x 5" x 1/2" Maximum
Angle Bending Capacity Leg Out: 1-3/4" x 1-3/4" x 1/4" Minimum
Angle Bending Capacity Leg In: 4" x 4" x 1/2" Maximum
Angle Bending Capacity Leg In: 1-3/4" x 1-3/4" x 1/4" Minimum
Flat Bar on Edge: 5" x 3/4"
Flat Bar, Easy Way: 8" x 1-1/2"
Square Bar: 2-3/4" x 2-3/4"
Round Bar: 3"
I-Beams, Taper Flanges Web Parallel to Bending Axis: 10" x 4" Maximum
I-Beams, Taper Flanges Web Parallel to Bending Axis: 3" x 2-3/8" Minimum
I-Beams, Flanges Parallel to Bending Axis: 4" x 2-5/8" Maximum
I-Beams, Flanges Parallel to Bending Axis: 3" x 2-3/8" Minimum
Channels, Flanges Out: 10" x 2-5/8" Maximum
Channels, Flanges Out: 3" x 1-1/2" Minimum
Channels, Flanges In: 10" x 2-5/8" Maximum
Channels, Flanges In: 3" x 1-1/2" Minimum
Machine Overall Dimensions: 5' F0B x 70" L-R x 75" H
Machine Weight: 12,750 Lbs.
