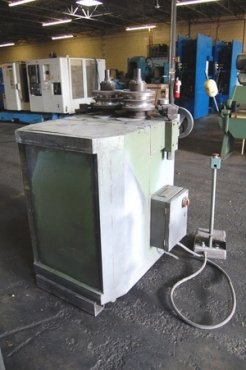

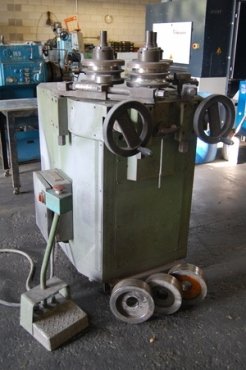

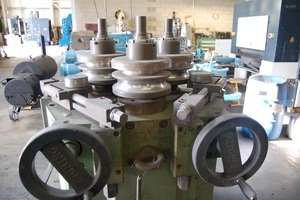

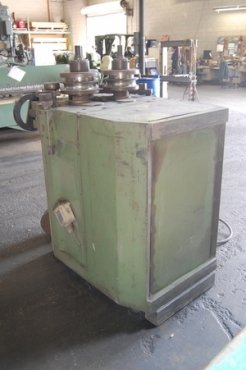

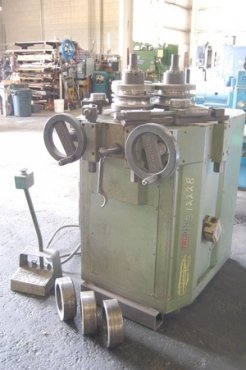

TAURING HORIZONTAL/VERTICAL ANGLE BENDING ROLL
PRICE: Loaded on Truck, Our Warehouse, York, PA …… $19,500.00
Stock # 12228
Serial # 4/60 New 3/1984 Model # DR/4
Made in Italy
Pyramid Style Bending Rolls
Mechanically Driven
Machine Can be Used in the Horizontal or Vertical Position
Capacities in Mild Steel:
Flats on Edge: 80 x 15 MM (3.15" x .59")
Angle Iron: 90 x 90 x 6 MM (3.54" x 3.54" x .24")
Tube – Pipe: 120 x 3 MM (4.72" x .12")
Round Solid: 35 - 50 MM (1.38" - 1.96") Depending on Radius
Square Solid: 30 - 45 MM (1.18" - 1.77") Depending on Radius
Shaft Diameter: 70 MM (2.76")
Upper Roll Diameter: 235 MM (9.25")
Lower Roll Diameter: 247 MM (9.72")
Shaft Speed: 4 RPM (1 Speed Only)
EQUIPPED WITH:
(3) 41.27 MM Round Dies (1-5/8")
(3) Dies for Flat Bar, Angle Iron and T-Shaped Materials
(2) Leg Guide Attachments
Remote Pendant Operation Station for Forward/Reverse
Manual Hand Crank Adjustment of Rolls
5.5 HP Main Motor, Wired for 3 Phase, 60 Cycle, 220/440 Volts
Presently Wired 220 Volts
Overall Size: 41" L-R x 58" F-B x 55" High x 3,200 Lbs.
