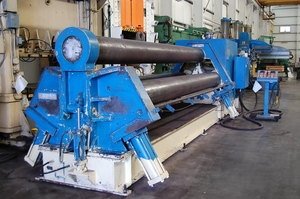

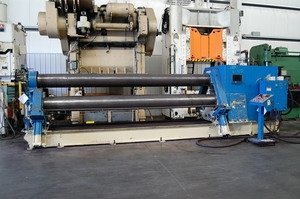

15' X 1/2" BERTSCH HYDRAULIC 3-ROLL DOUBLE PINCH PLATE BENDING ROLL Loaded on Truck, Our Warehouse, York, PA
Stock # 11064
Serial # M-10775 New 1991 Model # 11 x 15'
Rated Capacity: 1/2" at 15' (Mild Steel)

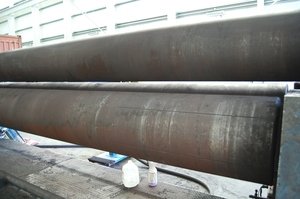

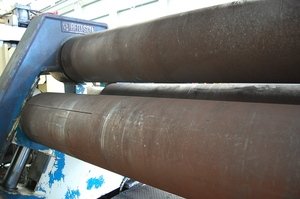

Top Roll Diameter: 15" at Center & 14-5/8" at Each End
Front & Rear Roll Diameter: 15" at Center & 14-5/8" at Each End
Overall Length Top Roll: 190"
Overall Length Front & Rear Roll: 182"
Working Height Per Factory Drawing: 40" Roll Center to Floor Line with
Machine in an 18-3/8" Pit
EQUIPPED WITH:
Flush Floor Design
Direct Acting Hydraulic Cylinders Mounted to Each End of Front & Rear Rolls
Roll Leveling System
Tilt Setting for Front & Rear Roll
Digital Readout for Position of Front & Rear Roll with Selector Switch for
Hinge End or Gear End

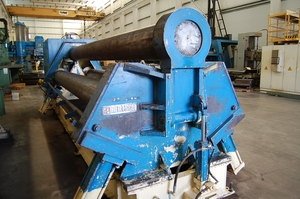

Hydraulic Drop End with Automatic Self-Locking Hinge
Forward & Reverse Roll Drive
Variable Roll Speed
Each Side Roll Adjusting System Provided with Sufficient Power to Pre-Bend
Up to Full Rated Capacity Plate

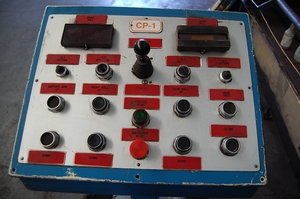

Pedestal Mounted Operator Control with Additional Hand-Held Pendant for
Forward & Reverse
Structural Steel All Welded Base Construction
Electrical, Hydraulic & Lay-Out Schematics
20 HP Main Motor, Wired for 3 Phase, 60 Cycle, 230/460 Volts
Currently Wired for 460 Volts
Overall Size Machine: 294" L-R x 80" F-B x 94" H x 46,500 Lbs.
Overall Size Control Stand: 31" L-R x 20" F-B x 51" H
