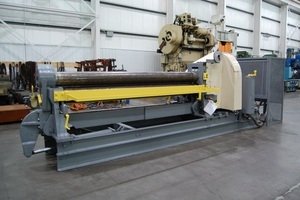

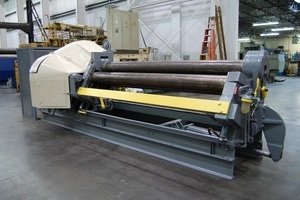

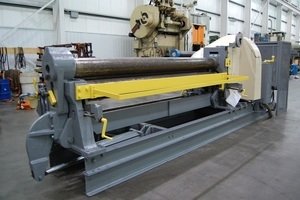

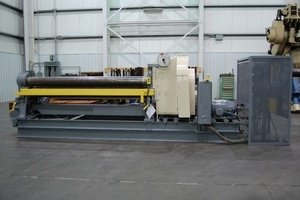

10' x 1/4" BERTSCH INITIAL PINCH MECHANICAL PLATE BENDING ROLLS
PRICE: Loaded on Truck, Our Warehouse, York, PA …………… $24,500.00
Stock # 11041
Serial # 9028 New 1958
Rated Capacity: 10' x 1/4" Mild Steel
Top Roll Size: 9-5/8" Diameter x 125" Long
Bottom Roll Size: 10-3/8" Diameter x 122" Long
Rear Adjusting Roll: 9-7/8" Diameter x 122" Long
Manual Adjustment of Lower Front Roll
Power Adjustment to Rear Roll: 11"
EQUIPPED WITH:
Air Drop End
Grease Zerk Fitting Lubrication
Forward & Reverse Operation
Variable Roll Speeds Thru Drum Controller (Trolley Car Style)
Gearing, Motor and Electrical Guards
Machine is Mounted on a 10" I-Beam to Make it Flush Floor Operation
Without I-Beam a Clearance Pit Will be Needed for the Air Drop End
15 HP Vari Speed CIP Motor
Wired for 3 Phase, 50/60 Hz, 208-220-440 Volts
DIMENSIONS:
Machine: 230" L-R x 80" F-B x 80" High
Electrical Panel: 48" L-R x 30" F-B x 76" High

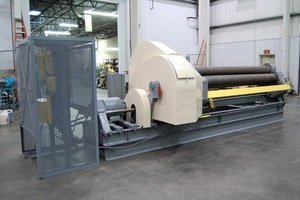

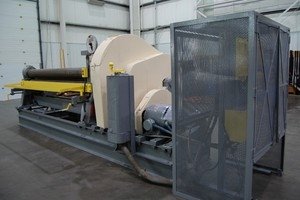

Panel Cage: 54" L-R x 36" F-B x 78" High
Total Weight 24,000 Lbs.
