BEHRINGER, HBP800/1004GA-3000-NC, BAND, HORIZONTAL, SAWS
  • Condition:Used
  • Category:SAWS
  • Type:BAND, HORIZONTAL
  • Manufacturer:BEHRINGER
  • Model:HBP800/1004GA-3000-NC
  • YOM:1998
  • Location:United States, York
  • Price:-
  • Stock No:-
  • Control:-
  • ID:AS17259
Description:

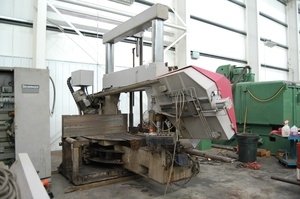

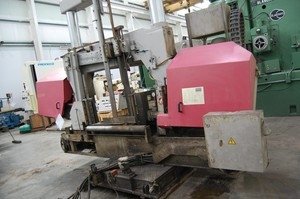

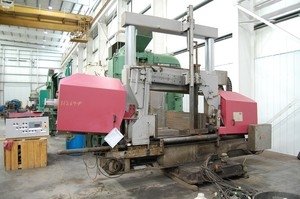

BEHRINGER CNC HORIZONTAL BAND SAW
PRICE: Loaded on Truck, Our Warehouse, York, PA …… $139,500.00

Stock # 11269-P
Serial # 798417 New 1998 Model HBP800/1004GA-3000-NC

Sawing Capacity in Round at 90 Degrees: 31.8"
Sawing Capacity in Rectangular at 90 Degrees: 40" x 31.5"
Sawing Capacity in Round at 75 Degrees: 31.8"
Sawing Capacity in Rectangular at 75 Degrees: 35.4" x 31.5"
Sawing Capacity in Round at 60 Degrees: 31.8"
Sawing Capacity in Square at 60 Degrees: 31.4" x 31.4"
Sawing Capacity in Round at 45 Degrees: 23.6"
Sawing Capacity in Square at 45 Degrees: 23.6" x 23.6"
Shortest Cutting Length: 1.3"
Smallest Material Size: 1.1" Diameter or .78" x .78" Square
Blade Size: 32' 10" x 2" x .063"
Blade Speed: 70 to 355 FPM
Blade Tension Pressure: 90 Bar
Noise: 70 dB in Idle & 90 dB Maximum While Cutting
Diameter of Saw Head Guide Posts: 8.4"
Travel of Material Supply Carriage: Up to 120" (Full Stroke)

EQUIPPED WITH:

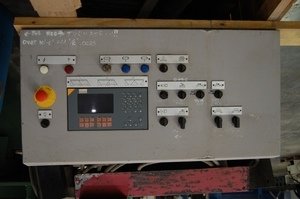

Behringer BT-20 CNC Control
Free Standing Control Console
Auto or Manual Operation
Vertical Hold Down Clamp
Chip Conveyor
Light Barrier Sensing
Band Slip Monitor
15 HP Blade Drive Motor, Wired 3 Phase, 60 Cycle, 440 Volts
Operator Manual
Electrical Schematics
Floor Layout Drawing
(6) New Blades

DIMENSIONS:

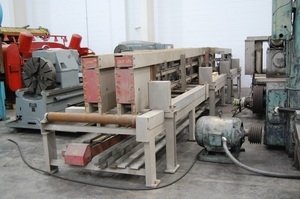

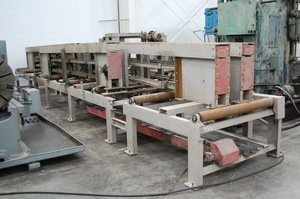

(1) Section of Powered Roller Conveyor: 20' L
Rollers: 47" L x 4-1/4" Diameter
(4) Side Guide Rolls: 12" H
(1) Section of Powered Roller Conveyor: 30' L
Rollers: 47" L x 4-1/4" Diameter
(4) Side Guide Rollers: 12" H

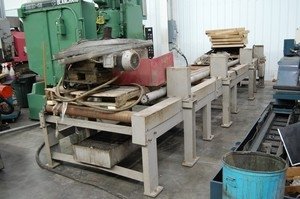

(5) 13' L Lift & Carry Stands that Feed Material onto the Roller Conveyor
Chip Conveyor: 142" L x 9" W
Saw: 196" L x 94" W x 140" Overall Height
Saw is 10' 9" H When Top Clamp Cylinder is Removed
Material Infeed Carriage: 99" W x 168" L x 69" H
(1) Section Roller Infeed Conveyor: 30' L x 67" W x 44" H
(1) Section Roller Infeed Conveyor: 20' L x 67" W x 44" H
(5) Lift & Carry Stands: 158" L x 20" W x 32" H Each
Electric Cabinet: 4' L x 22" W x 85" H
Operator Control Console: 39" L x 19" W x 42" H
Hydraulic System: 32" L x 24" W x 37" H
Chip Conveyor: 142" L x 16" W x 9" H
Coolant Pan: 94" L x 20" W x 7" H
Wood Crate with Misc. Parts & Wires: 65" L x 38" W x 26" H

Purchased New in 1998 for $358,610.00
Specifications:
BEHRINGER CNC HORIZONTAL BAND SAW
PRICE: Loaded on Truck, Our Warehouse, York, PA …… $139,500.00

Stock # 11269-P
Serial # 798417 New 1998 Model HBP800/1004GA-3000-NC

Sawing Capacity in Round at 90 Degrees: 31.8"
Sawing Capacity in Rectangular at 90 Degrees: 40" x 31.5"
Sawing Capacity in Round at 75 Degrees: 31.8"
Sawing Capacity in Rectangular at 75 Degrees: 35.4" x 31.5"
Sawing Capacity in Round at 60 Degrees: 31.8"
Sawing Capacity in Square at 60 Degrees: 31.4" x 31.4"
Sawing Capacity in Round at 45 Degrees: 23.6"
Sawing Capacity in Square at 45 Degrees: 23.6" x 23.6"
Shortest Cutting Length: 1.3"
Smallest Material Size: 1.1" Diameter or .78" x .78" Square
Blade Size: 32' 10" x 2" x .063"
Blade Speed: 70 to 355 FPM
Blade Tension Pressure: 90 Bar
Noise: 70 dB in Idle & 90 dB Maximum While Cutting
Diameter of Saw Head Guide Posts: 8.4"
Travel of Material Supply Carriage: Up to 120" (Full Stroke)

EQUIPPED WITH:
Behringer BT-20 CNC Control
Free Standing Control Console
Auto or Manual Operation
Vertical Hold Down Clamp
Chip Conveyor
Light Barrier Sensing
Band Slip Monitor
15 HP Blade Drive Motor, Wired 3 Phase, 60 Cycle, 440 Volts
Operator Manual
Electrical Schematics
Floor Layout Drawing
(6) New Blades

DIMENSIONS:
(1) Section of Powered Roller Conveyor: 20' L
Rollers: 47" L x 4-1/4" Diameter
(4) Side Guide Rolls: 12" H
(1) Section of Powered Roller Conveyor: 30' L
Rollers: 47" L x 4-1/4" Diameter
(4) Side Guide Rollers: 12" H
(5) 13' L Lift & Carry Stands that Feed Material onto the Roller Conveyor
Chip Conveyor: 142" L x 9" W
Saw: 196" L x 94" W x 140" Overall Height
Saw is 10' 9" H When Top Clamp Cylinder is Removed
Material Infeed Carriage: 99" W x 168" L x 69" H
(1) Section Roller Infeed Conveyor: 30' L x 67" W x 44" H
(1) Section Roller Infeed Conveyor: 20' L x 67" W x 44" H
(5) Lift & Carry Stands: 158" L x 20" W x 32" H Each
Electric Cabinet: 4' L x 22" W x 85" H
Operator Control Console: 39" L x 19" W x 42" H
Hydraulic System: 32" L x 24" W x 37" H
Chip Conveyor: 142" L x 16" W x 9" H
Coolant Pan: 94" L x 20" W x 7" H
Wood Crate with Misc. Parts & Wires: 65" L x 38" W x 26" H

Purchased New in 1998 for $358,610.00
