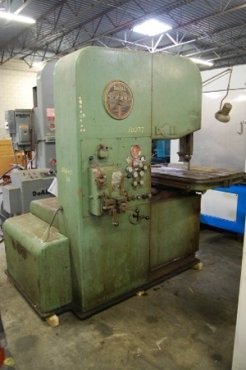

26" DOALL VERTICAL BAND SAW
PRICE: Loaded on Truck, Our Warehouse, York, PA
Stock # 10077
Serial # 198-68342 New 1968 Model # 2613-3

2-Wheel Design
Throat: 26"
Part Height: 13" Maximum
Blade Size: 1/8" to 1"
Table Feed Force: 0 to 600 Lbs.
Blade Speeds, Variable: 55 to 10,000 FPM
Table Size: 32" x 41" with (4) T-Slots
Table Tilts: 45 Degrees Right and 5 Degrees Left
Table Feed Stroke: 16"
Hydraulic Table Feed Rate: 0 to 8 FPM
Upper Wheel Adjustment: 3"

EQUIPPED WITH:
Automatic Hydraulic Wheel Brake
(1) Set of Solid Blade Guides for 1" Blade
Has Blade Shear, Grinder and Welder
3-Speed Transmission
Machine Work Light
Hydraulic Up-Down Adjustment of Blade Guide Post
Hydraulic Blade Tensioning
Hydraulic Tilting and Feed of Table
(1) Adjustable Table Feed Stop
7-1/2 HP Main Motor
Wired for 3 Phase, 60 Cycle, 230-460 Volts
Presently Wired for 440 Volts
Overall Size: 87" L-R x 61" F-B x 87" H x 4,700 Lbs.
