Description:

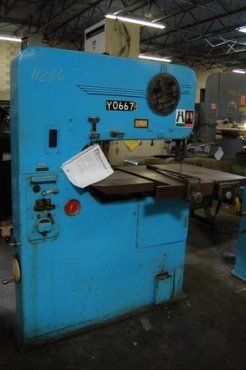

36" DOALL VERTICAL BAND SAW
PRICE: Loaded on Truck, Our Warehouse, York, PA …… $2,250.00
Stock # 11256
Serial # 36443195 New 1949 Model # V36
Variable Blade Speeds: 50 to 1600 FPM Via 2-Speed
Blade Width: 1/4" to 1" with Proper Blade Guides
Main Table: 30-1/2" x 30-1/2"
Table Tilts: 45 Degrees Right & 15 Degrees Left
Table Tilts: 10 Degrees Up & Down
Maximum Height Under Blade Guide: 10" (With Blade Tension Handle Removed)
Auxiliary Work Support Table: 20" F-B x 16-3/4" L-R
Trans. & Vari Speed Sheave
(3) 16" Diameter Rubber Covered Blade Drive Wheels
EQUIPPED WITH:
Hydraulic Power Table Feed
Presently has 1/4", 3/8" & 1/2" Blade Guides
Manual Blade Tension Adjustment
Manual Blade Tracking Adjustment of Top Wheel
Doall Blade Welder with Anneal and Grinder
Air Blower Pump
Machine Work Light
25" Long x 1-1/2" High Adjustable Table Rip Fence
1/3 HP Hydraulic Pump Motor, 230 Volts Only
1 HP Motor, Wired 3 Phase, 60 Cycle, 220-440 Volts
Presently Wired For 440 Volts (Has Internal Transformer for Other Connections)
Specifications:
36" DOALL VERTICAL BAND SAW
PRICE: Loaded on Truck, Our Warehouse, York, PA …… $2,250.00
Stock # 11256
Serial # 36443195 New 1949 Model # V36
Variable Blade Speeds: 50 to 1600 FPM Via 2-Speed
Blade Width: 1/4" to 1" with Proper Blade Guides
Main Table: 30-1/2" x 30-1/2"
Table Tilts: 45 Degrees Right & 15 Degrees Left
Table Tilts: 10 Degrees Up & Down
Maximum Height Under Blade Guide: 10" (With Blade Tension Handle Removed)
Auxiliary Work Support Table: 20" F-B x 16-3/4" L-R
Trans. & Vari Speed Sheave
(3) 16" Diameter Rubber Covered Blade Drive Wheels
EQUIPPED WITH:
Hydraulic Power Table Feed
Presently has 1/4", 3/8" & 1/2" Blade Guides
Manual Blade Tension Adjustment
Manual Blade Tracking Adjustment of Top Wheel
Doall Blade Welder with Anneal and Grinder
Air Blower Pump
Machine Work Light
25" Long x 1-1/2" High Adjustable Table Rip Fence
1/3 HP Hydraulic Pump Motor, 230 Volts Only
1 HP Motor, Wired 3 Phase, 60 Cycle, 220-440 Volts
Presently Wired For 440 Volts (Has Internal Transformer for Other Connections)
Weight:
1975 (LBS)
