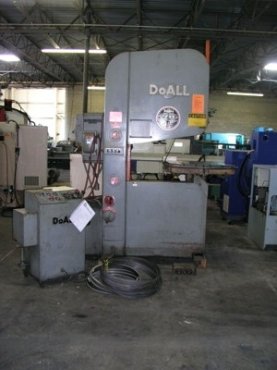

36" DOALL ZEPHYR VERTICAL BAND SAW
PRICE: Loaded on Truck, Our Warehouse, York, PA ……

Stock # 07097
Serial # 266-79244New 1979Model # ZW-3614-1H3
Throat Capacity: 35-1/4"
Maximum Height Under Blade Guide: 14"
Maximum Height Under Blade Tension Wheel: 9"
Table Size: 32" L-R x 41" F-B with (4) T-Slots Running F-B
Coolant Trough Running Around the Table: 1" Wide
Floor Line to Table Top: 47-1/2"
Table Tilt: 45 Degrees Right & 10 Degrees Left
Blade Wheel Diameter: 36"
Blade Speeds: 70 to 15,000 FPM Via High/Med/Low Gear Range
Blade Size: 234" Long

EQUIPPED WITH:
Hydraulic Feeding Table
Variable Table Feed
Variable Table Pressure
Manual Table Tilt
Manual Blade Tension with Indicator Gage that Reads to 1-1/2" Blades
Manual Blade Tracking
Manual Adjustable Blade Guard
Stand Alone Control for Hydraulic System with Foot Pedal Control
(2) Work Lights
Spray Mist Coolant
Table Vise
Currently Equipped with Solid Carbide Blade Guides
Assorted Manuals
10 HP Main Motor, Wired 3 Phase, 60 Cycle, 460 Volts Only

DIMENSIONS:
Machine: 93" L-R x 56" F-B x 108" H
Control: 28" L-R x 16" F-B x 39" H
