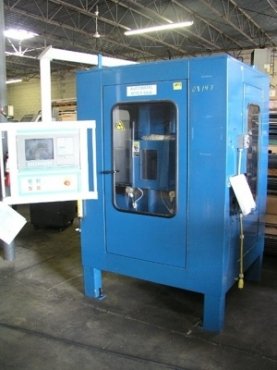

SAW TECHNOLOGY DOUBLE HEAD CNC NOTCHING SAW
PRICE: Loaded on Truck, Our Warehouse, York, PA
Stock # 08147
Serial # D-35745 New 10/2002 Model # AE1280
12" Saw Blade Diameter
(2) Carbon Tipped Blades
High Speed, Non-Ferrous

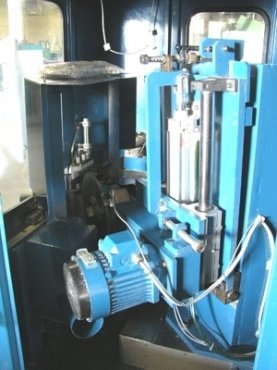

Vertical Travel of Saw Head: 12"
Air Feed of Heads Up Down
Heads Operate Independently Up and Down
Heads have Limited Approx. 1" Vertical Tilt Adjustment

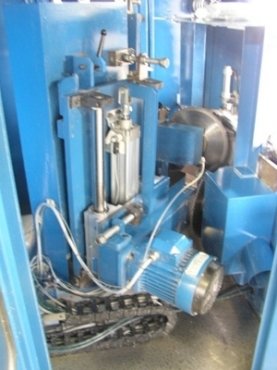

Both Heads are Arranged on a Common Weldment That is Bolted to
The Saddle Slide
Head Bracket Set at 90 Degrees, Bolted to the CNC Controlled Saddle = Y Axis
(1) Pneumatic Work Clamp on Each Side of Cut
Totally Enclosed Work Area with (3) Access Doors
8-1/4" x 5-1/2" and 3" W x 2" H Port Cut in Enclosure for Work to Pass Thru
Full CNC Control with 10" CRT and Port for PS2 Keyboard Plug In
Compressed Air Required
Air Regulator with Filter Bowl
Perimeter Safety Control System

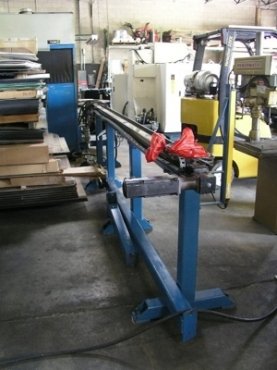

CNC Bar Feed: 14' L x 3" W x 2-1/2" Deep Capacity

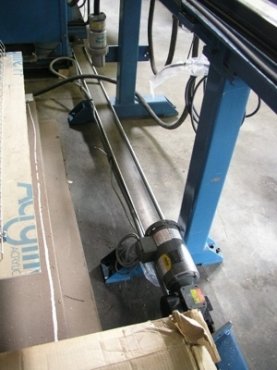

8' L x 3-3/4" W Motorized Conveyor for Cut Piece Removal
Floor to Bar Feed Height: 39"
UNIST Spray Type Mist Coolant System
2-Axis Indramat Eco Drives CNC
Bar Feed System is the X Axis
Operators Manual with Schematics
1.5 KW Saw Motors, Wired for 3 Phase, 60 Cycle, 220/460 Volts
Presently Wired for 220 Volts = 2870 RPM Motor
DIMENSIONS:
Overall Machine Size: 84" L-R x 86" F-B x 93" H
Bar Feed and Conveyor: 17' L-R x 27" F-B x 59" H
