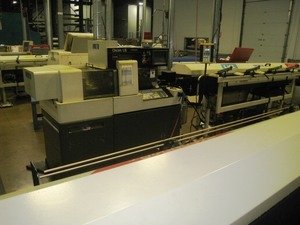

CITIZEN L-16/20 TYPE VII CNC SWISS TYPE SINGLE SPINDLE SCREW MACHINE
General Specifications

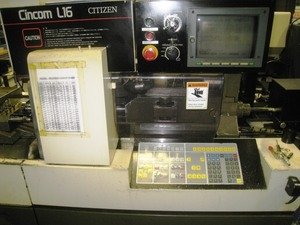

CNC control Cincom System IIC
Max. machining diameter .79"
Max. machining length per one chuck 7.87"
Max. drilling diameter .315"
Spindle speed 300-10000 RPM
Max. chucking dia. of back-work spindle .63"
Max. drilling diameter of back-work spindle .236"
Max. pick-off length 2.756"
Back-work spindle speed 100-5000 RPM
Number of tools mounted 12 Turning6
Drilling3
Back-work drills 3
Tool size3/8"x 3/8"x 2-3/8" Motors:
Back-work spindle drive 2.2/3.7 kW
Required floor space 65"x 37" Approx. weight 5,000 lbs.
Motor Specifications
Not Available
Equipped With
Mitsubishi CNC control

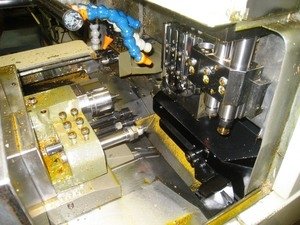

3 station live tooling
Sub-spindle C-Axis
LNS Hydrobar Mini Sprint bar feed, S/N 46699-96
Coolant system
Splash guards
(oversize spindle bore 20 mm)
Serial Number
X9277 Year
1996 Location
PROSPECT HEIGHTS, IL
