PROPOSAL Stock 00010745
Quote # 278189
We are pleased to submit for your consideration:

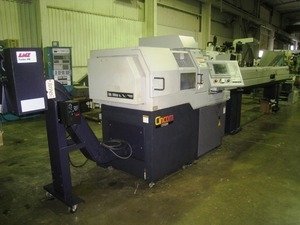

CITIZEN L20-VIII CNC SWISS TYPE TURNING CENTER
SERIAL NUMBER Q13314 NEW 2003
Page 1 of 2
GENERAL SPECIFICATIONS:
Max. Machining diameter 20mm (.79")
Max. Machining length 200mm (7.87")
Max. Front drilling diameter 10mm (.39") Max. Front tapping size (with tap & die) M8 Spindle through-hole diameter 24mm (.94") Main spindle speed 10,000 RPM Max. Drilling dia. in the rotary gang tool mach process 8mm (.32") Max. Tapping dia. in the rotary gang tool mach process M6 Rotary spindle speed 4,500 RPM Max. Chuck dia. of the back spindle 20mm (.79") Max. Workpiece length for th efornt side collect from- the back spindle 80mm (3.15") Max. Drilling dia. in the back machining process 8mm (.32") Max. Tapping dia. in the back machining process M6 Back spindle speed 8,000 RPM Number of tools to be mounted 18-21 Turning tools on the gang tool post 5 Rotary tools on the gang tool post 7 Rotary tools for front spindle 2 (option)
Tools for front spindle 3
Tool Size:
Gang tool post (tool) 1/2 (TO1 5/8")
Sleeve 19.05mm (.75")
Rapid feed rate:
All axes 32 m/min
Motor:
Main Spindle drive 2.2/3.7 Kw
Tool Spindle drive 1.0 Kw
Back Spindle drive 0.75/1.5 Kw
Cutting oil 0.4 Kw
Center height:
Imput power capacity 1,050mm (41.34")
Air pressure and air flow rate for air-driven equip. 0.5 Mpa * 50NI/Min Weight (approx.) 2,100 Kg
Page 2 of 2
EQUIPPED WITH:

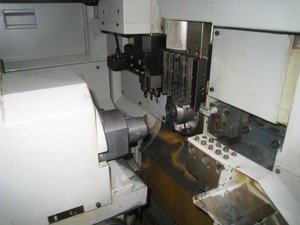

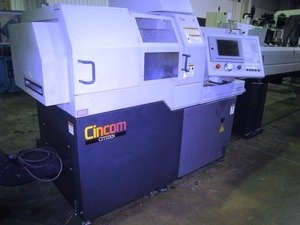

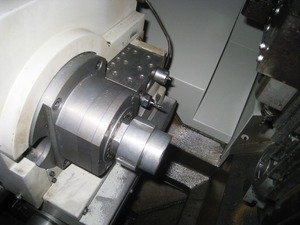

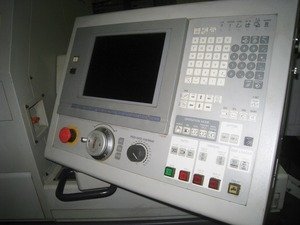

Cincom CNC Controls Options:
1. Synchronized Rotary Guide Bushing
2. Synchronized Bar Loader

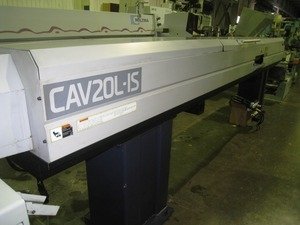

3. Program Work area Size 80mm, Memory 160mm 4. Custom Macros 5. Tool Spindle Synchronized Tapping Function 6. Canned Drill Cycle Main Axis & C-Axis 7. Sub Spindle Constant Surface Feed 8. Sub Spindle Chasing Function 9. Spindle Syncronized Function CAV-20L-IL Magazine bar feed Main spindle chucking device Rotary guide bushing drive device Rotary guide bushing device Coolant device (with level sensor) Door switch/Door lock Workpiece separator Lubrication device (w/level sensor) back spindle chucking device Rotary Tool Spindle unit for gang tool Chip Conveyor
(3) Live vertical spindles
(1) GSE 1110 3-Spindles live tool or (1) GSE 1007 6-Spindle live tool Cool blaster interface & manifold (missing pump) Cool blaster 850 Mist collector
WATCH VIDEO: www.youtube.com/watch?v=fX1Cvh4OlYk
