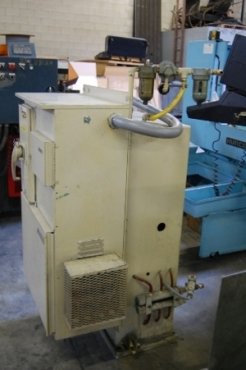

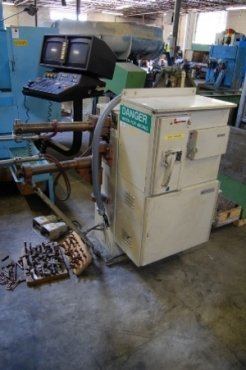

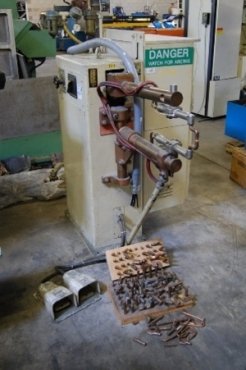

50 KVA TELEDYNE PEER SPOT WELDER
PRICE: Loaded on Truck, Our Warehouse, York, PA …… $4,950.00
Stock # 11066
Serial # 790180 New 1979 Model # AR-450
Rocker Arm Style
Wired for Single Phase, 60 Hz, 220 Volts
Frequency: 60 Hz, 50% Duty Cycle
Projection Arm Size: 2-1/2" Diameter x 24" Long
Welding Tip Holders: 1-1/4" Diameter x 8-1/2" Long, Water Cooled
Lower Bar Swivels and Adjusts Vertically
Vertical Adjustment of Lower Bar: 9"
Maximum Throat Size in Present Configuration: 33"
Adjustable Lower Bar Support
Dual Foot Pedal Welding Control for: Weld-Retract
Air Regulator with Lubrication and Filter Bowls
Technitron 2000B Control, 2-Stage
Variable Controls For: Squeeze, Weld Time, Hold, Off, % Current
Control Switches For: Single-Repeat, Weld-No Weld
Water Cooled Machine, No Cooling System with Machine

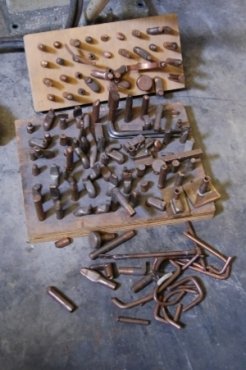

Large Assortment of Used Welding Tips
Technitron Installation and Maintenance Manual
Electrical Schematics
Overall Size: 36" L-R x 63" F-B x 60" High x 1,000 Lbs.
Also Small Card Board Box with Used Welding Tips
Machine is in Good As Taken From Service Condition
