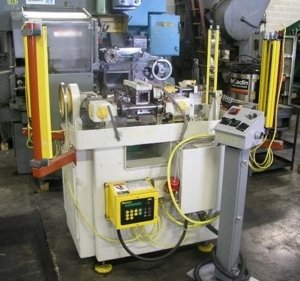

#00 US BAIRD 4 SLIDE MACHINE
PRICE: Loaded on Truck, Our Warehouse, York, PA



Stock # 08075

Serial # 10000-04-228 Circa 1976 Model # 00



CATALOG SPECIFICATIONS:

(This Information May Not be 100% Accurate to the Machine)

Maximum Wire Diameter: 040"

Standard Width Coil Stock: 7/16"

Maximum Feed Length: 4-1/4"

Operating Speed: 100 to 500 RPM

Standard Stroke with Cams:

Front Slide: 3/8"

Rear Slide: 3/8"

Side Slides: 5/8"

Vertical Motion: 11/16"



EQUIPPED WITH:

4 Cam Shafts - Complete

Infeed Slide Unit

(1) Bridge Type Slide Support

(1) Large Horizontal Ram Slide

(3) Small Horizontal Ram Slides

ISB Merlin Light Curtain Safety Controls

Full Perimeter Guarding With Lite Safety Curtains

Variable Speed Drive Unit

Infeed Stock Straightner Rolls

Operating Cycles: Off - Continuous - Run - Setup - Hand - Jog

3/4 HP Baldor 90 Volt DC Motor, 1750 RPM

Stroke Counter

Trico Automatic Central Lubrication System

Remote Operation Station

Dual Finger Button Trip Controls

(1) Vertical Slide Assembly

Wired for Single Phase, 115 Volt Operation

Overall Size: 39" x 63" x 63" High
